Setup Radius RadSec Server

AGNI Login

If you're not already logged into AGNI, navigate to the Arista Launchpad for your lab.

Open Launchpad

Login Step 1Login Step 2

Provide your assigned lab/pod email address and password and clieck Sign In

You will see the various tools tied to your tenant, this includes CVP, AGNI (NAC), and CV-CUE for wireless. Click into AGNI (Beta) tile to begin this lab.

Configuration

1. In AGNI Click on Configuration → System → RadSec Settings on the left hand side.



2. Copy the FQDN radsec.beta.agni.arista.io and Download the Certificate at the bottom.



3. Next, go back to CV-CUE and let’s set up a RadSec Server.

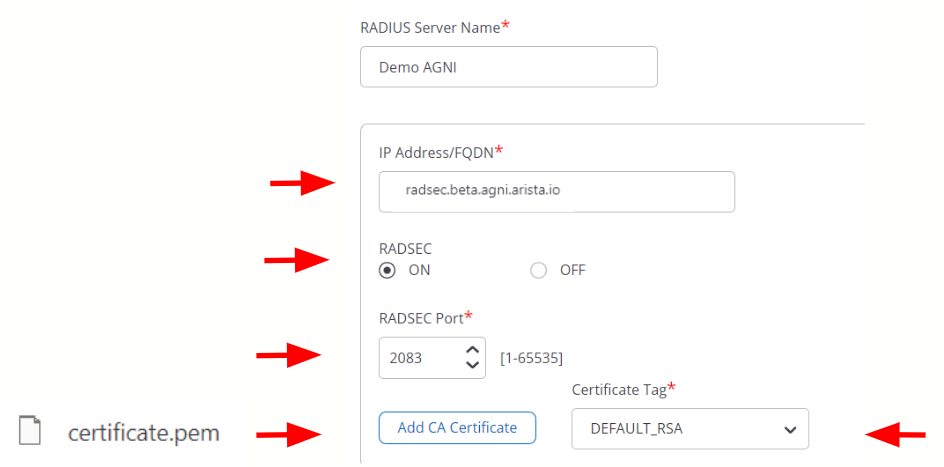

4. Click on Add RADIUS Server

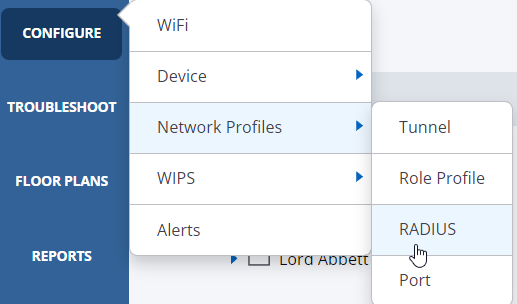

5. Navigate to Configure → Network Profiles → RADIUS
