Intangi Iris Configuration Tool

Overview

This lab is intended for the Campus Workshop and to showcase the partner tool to design, configure and price out Arista campus products and solutions. Authorized Arista partners are able to download and access the tool at intangi.com/support website. They are required to login with their corporate email address. Contact iris-help-ext@arista.com for assistance. There are many online resources available which includes videos, documentation, and more at intangi.com/support.

Iris Dashboard

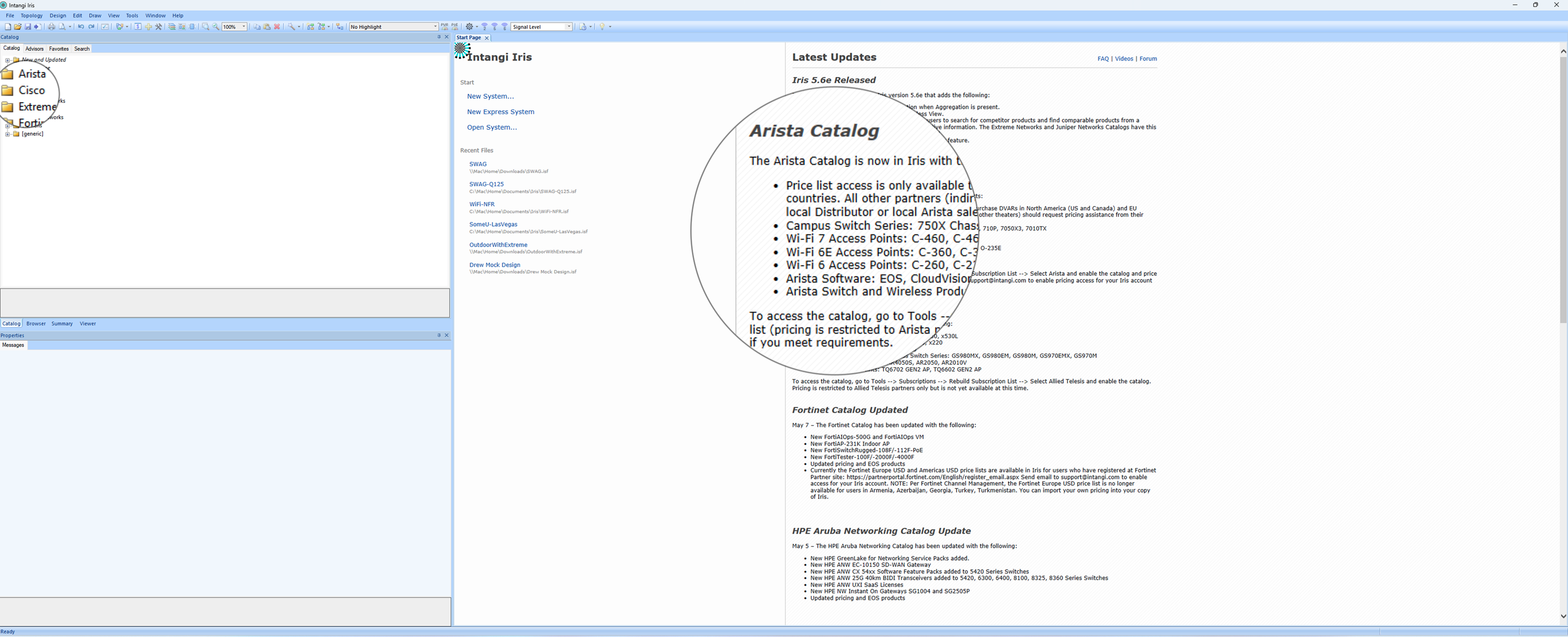

1. Upon successful login, you will be presented with the Iris dashboard. Click on the Arista catalog to start.

Arista Catalog at a glance

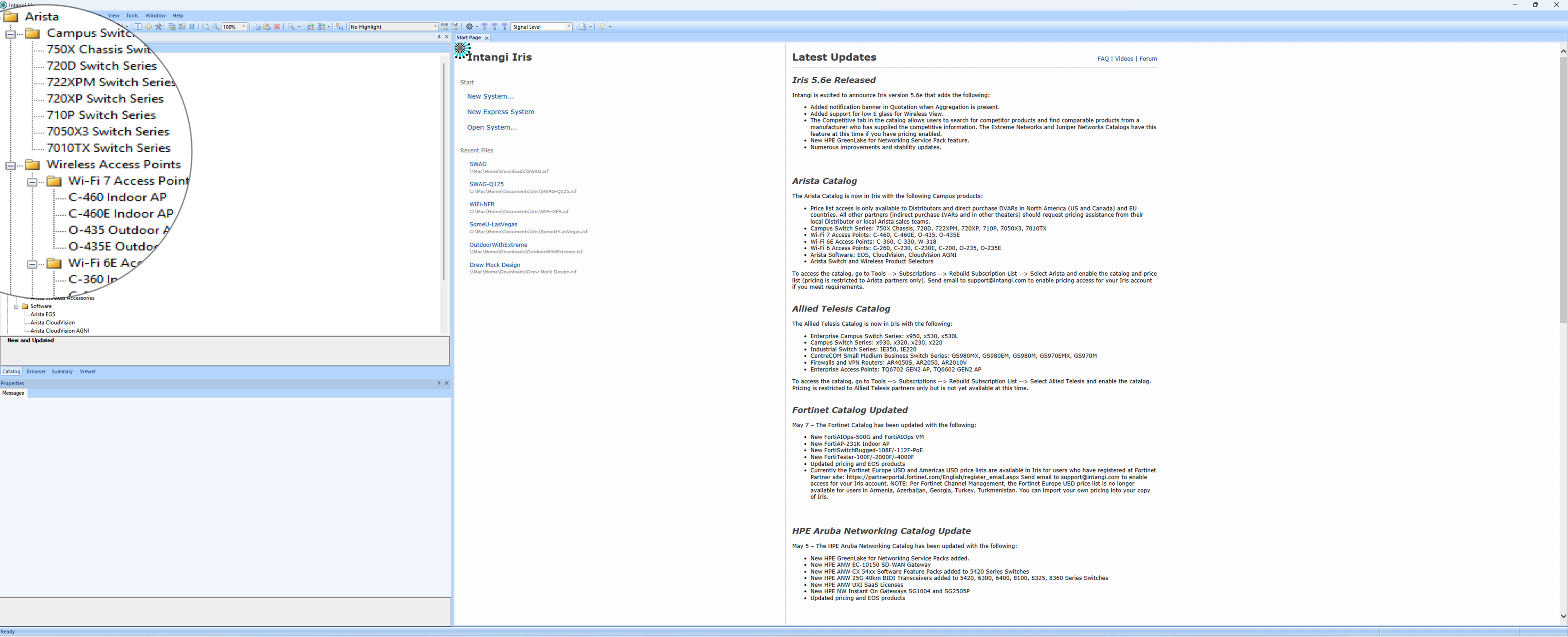

1. Expand the catalog to view the various devices and features available

Design, Configure and Price Out Your Network

You are now ready to create a new network design.

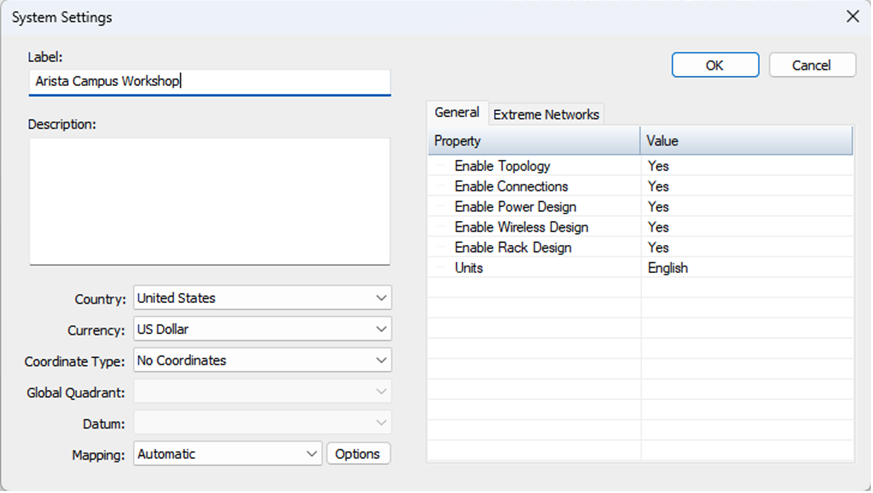

1. Under the Start section, click on New System Provide a name for your system, accept all defaults and click `OK.

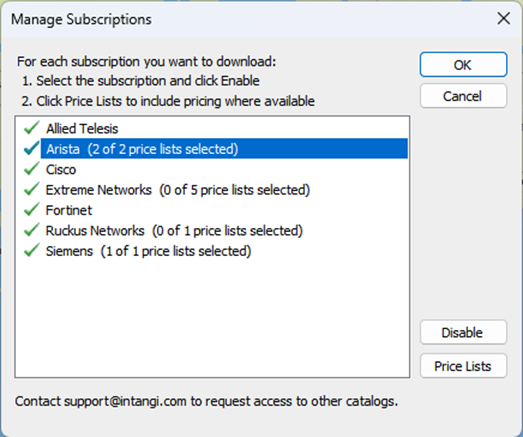

1. Select the Arista price list. Navigate to Tools on the horizontal menu bar, select Subscriptions then select Manage Subscriptions. Select the Arista price list and click Enable. Optionally click on Price Lists to view the price list details. USD and EUR price lists are available. Click OK to continue.

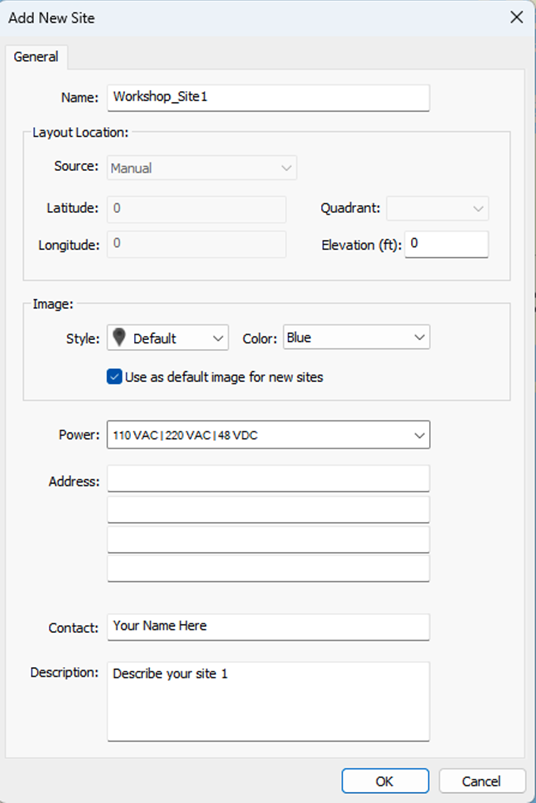

1. Create a new site. Navigate to Sites and click on New Site. Provide a name for your site, select the desired Power. Contact, Description are optional and click OK continue. Double-click on your workshop name on the map. A clean worshop space will be provided.

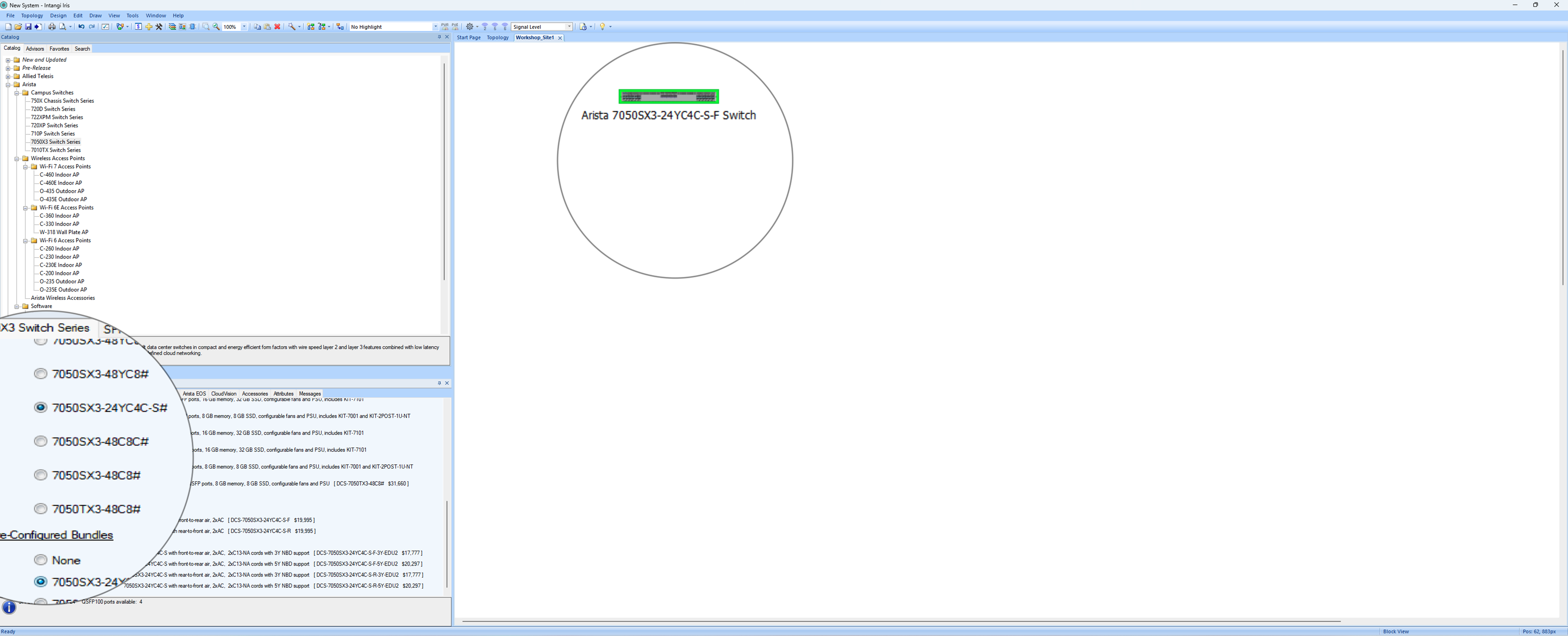

1. Choose a desired spine switch from the catalog. Double-click on the 7050X Switch Series, select one of the pre-configured 7050SX3-24YC2-F bundles. -F is with front-to-back fan trays, -R is rear-to-front. Cut-and-paste the device on the site workspace to build a two-switch spine network layer.

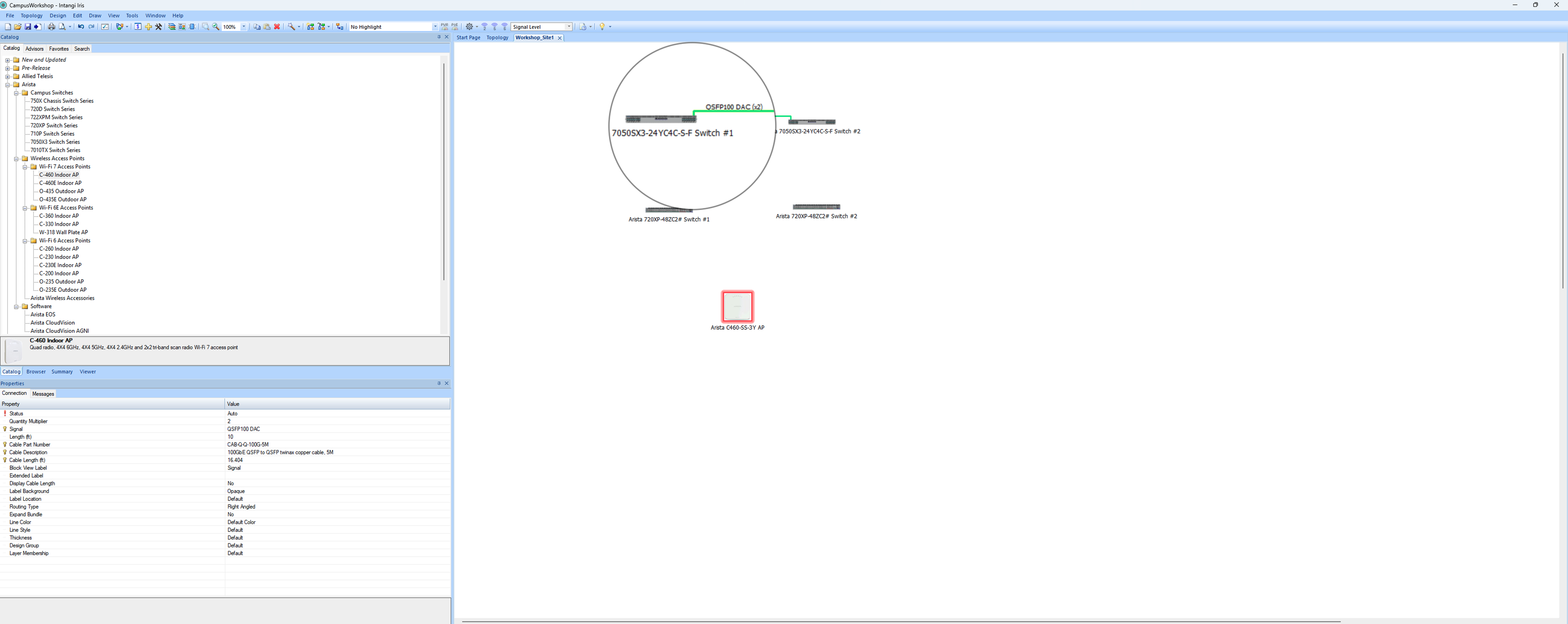

1. Interconnect the spine switches using the Connect tool. Select the spine switch and then the other spine switch. Choose the 100G DAC interface for the connection. We are pre-configuring the spine switches with MLAG

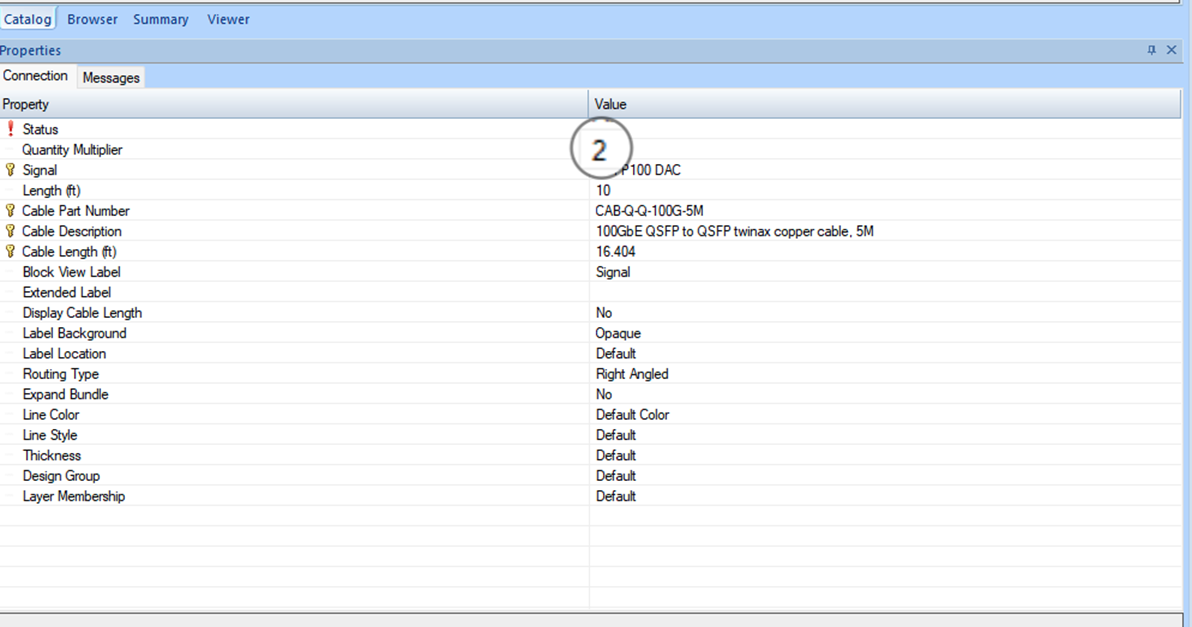

1. Edit the quantity multipler of 100G DAC to 2

1. Using the same method of choosing the right Arista products for your design, select 720XP-48ZC2 POE switches for the leaf layer. Add two switches for each leaf layer.

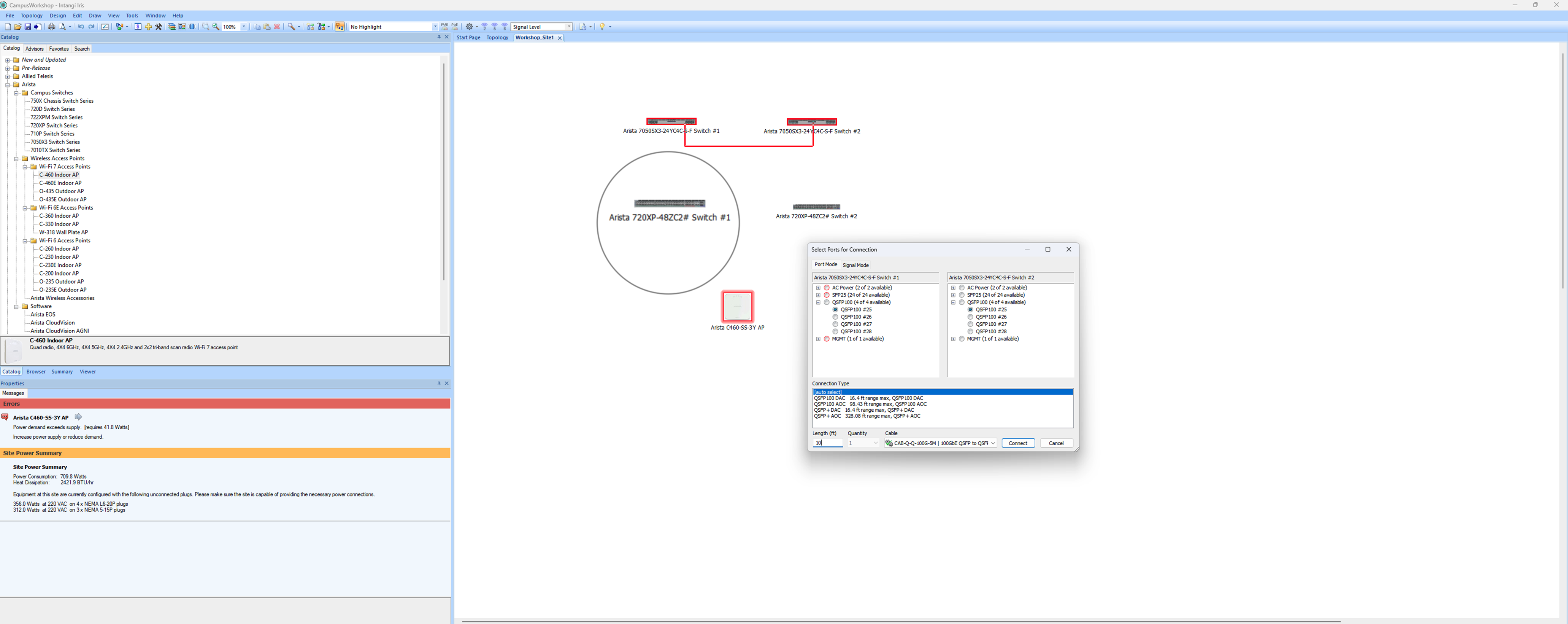

1. Connect the spine and leaf layer together using the Connect tool. Select the spine switch and then the leaf switch. Repeat for the second leaf switch.

1. Add an wireless access point to the leaf layer. Double-click on the Wireless Access Points and select the C-460 WiFi7 model. Cut-and-paste the device on the site workspace to build a two-switch active-active wireless layer.

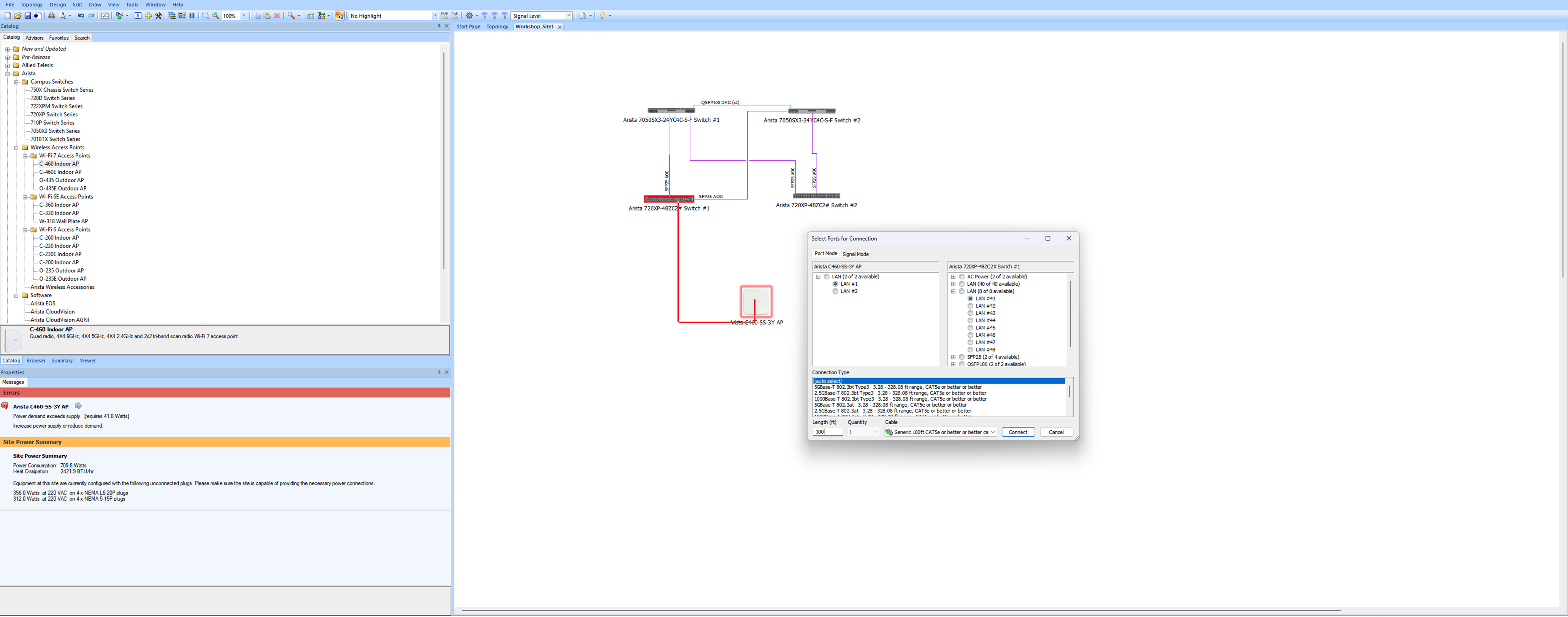

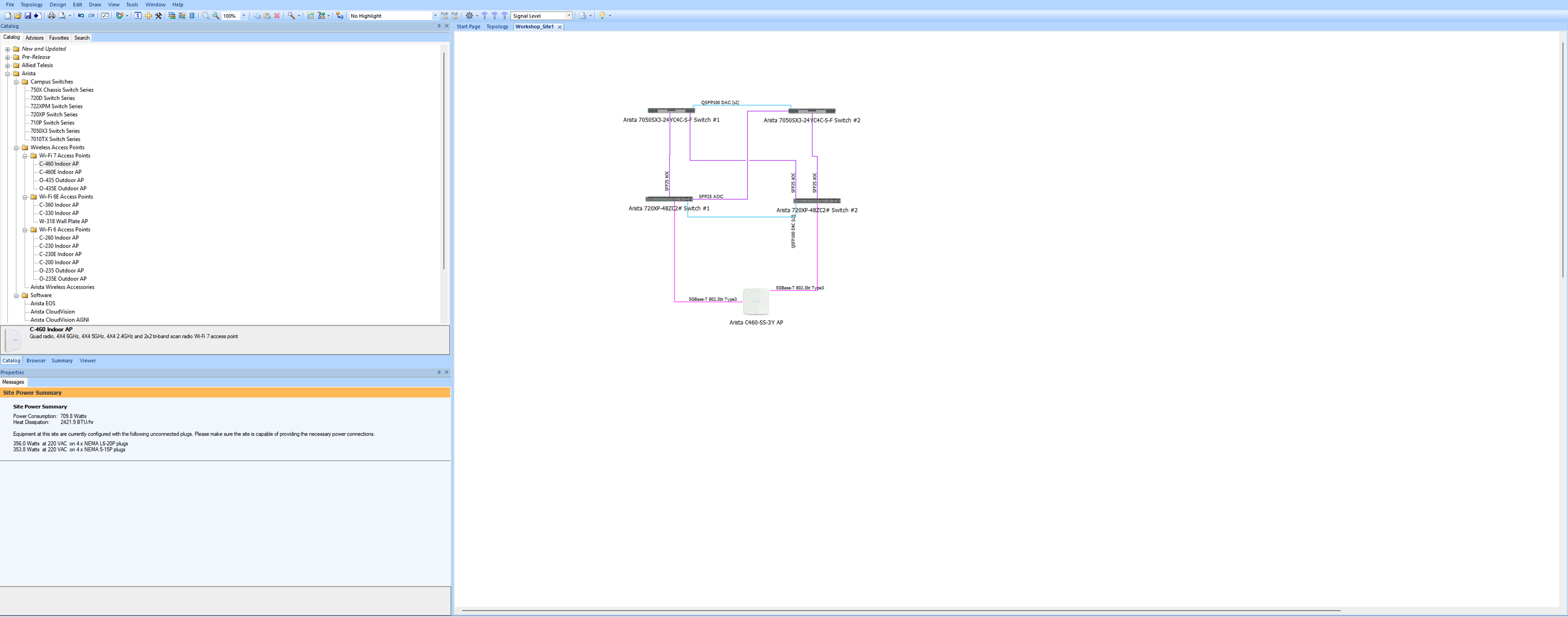

1. Connect the wireless access point to the leaf layer using the Connect tool. Select the leaf switch and then the wireless access point.

Create a Bill Of Material (BOM)

Iris can generate a Bill Of Material (BOM) for your design.

1. Navigate to Quotation or press Ctrl+Q

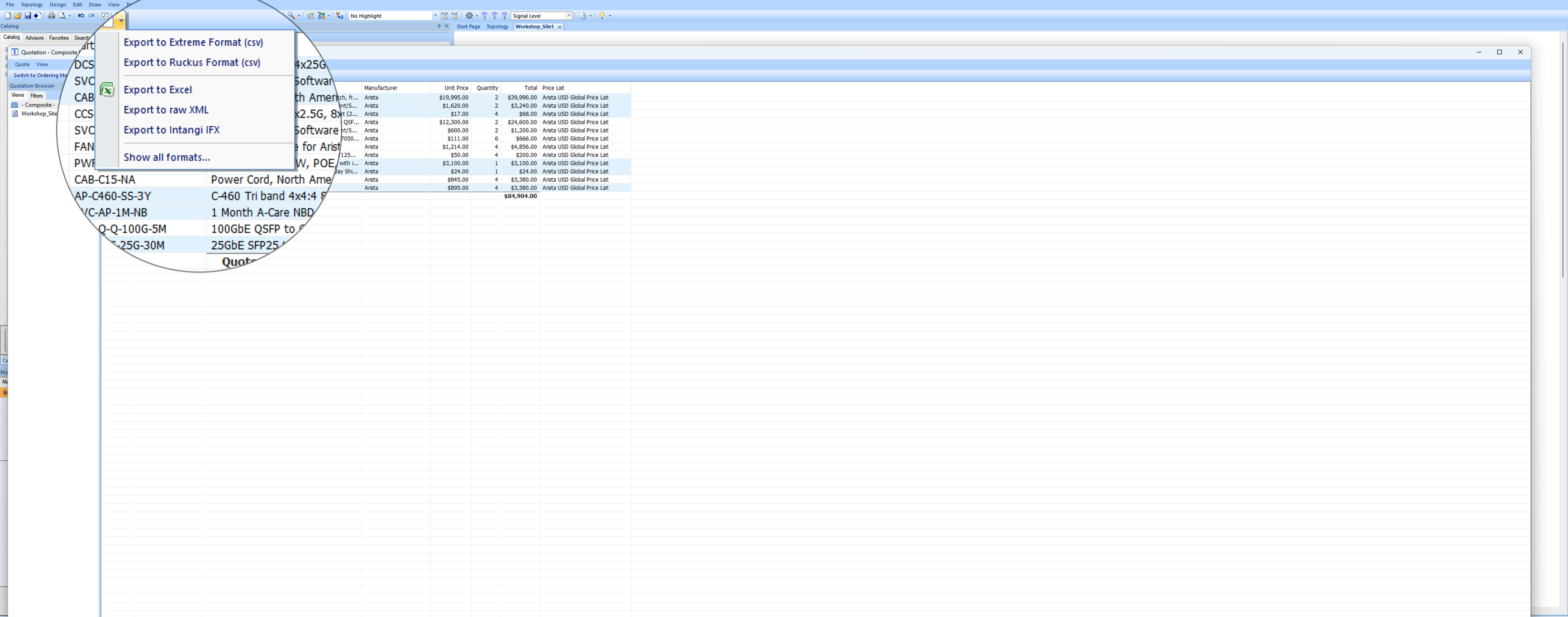

2. The Quotation Composite View will appear. You can see the devices and features selected for your design. You can also see the price for each device and feature. The total price is also displayed. Hover your cursor over the Export menu and select Export to Excel to download the BOM.

🎉 CONGRATS! You have completed the Iris labs! 🎉
