C-02 | AGNI UPSK Wireless Policy

Overview

In this lab we're going to explore the power of Unique Pre-Shared Keys (UPSK),

CV-CUE Login

If you're not already logged into CV-CUE, navigate to the Arista Launchpad for your lab.

Open Launchpad

Provide your assigned lab/pod email address and password and click Sign In

Launchpad Login

You will see the various tools tied to your tenant, this includes CVP, AGNI (NAC), and CV-CUE for wireless. Click into CV-CUE (CloudVision WiFi) tile to begin this lab.

Launchpad Login

Create Identity UPSK SSID

Let's create our new UPSK SSID by copying/modifying the PSK SSID we created in the CV-CUE lab.

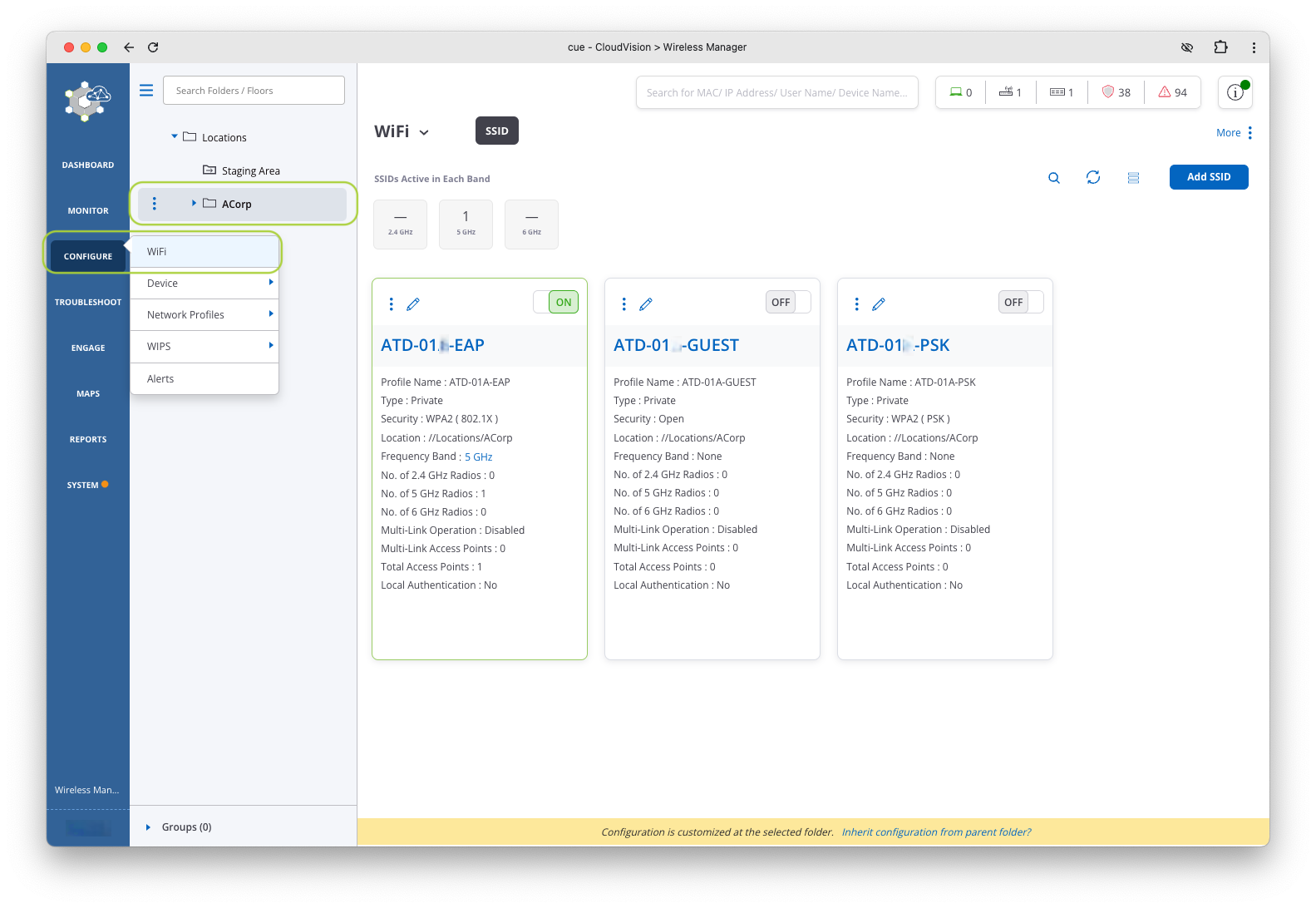

  1. While on your CorpA folder, Click on Configure and then WiFi

    Wireless EAP-TLS

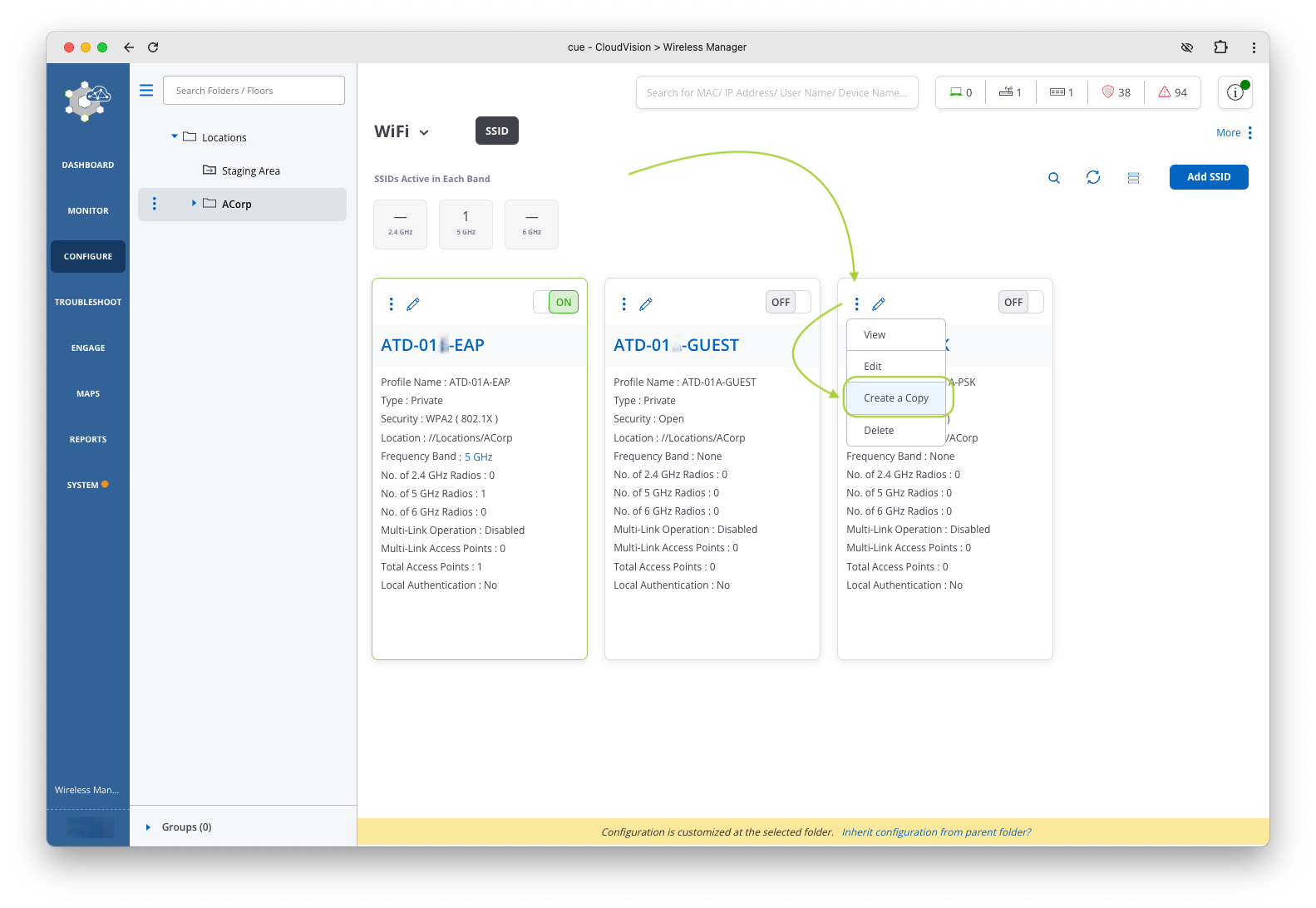

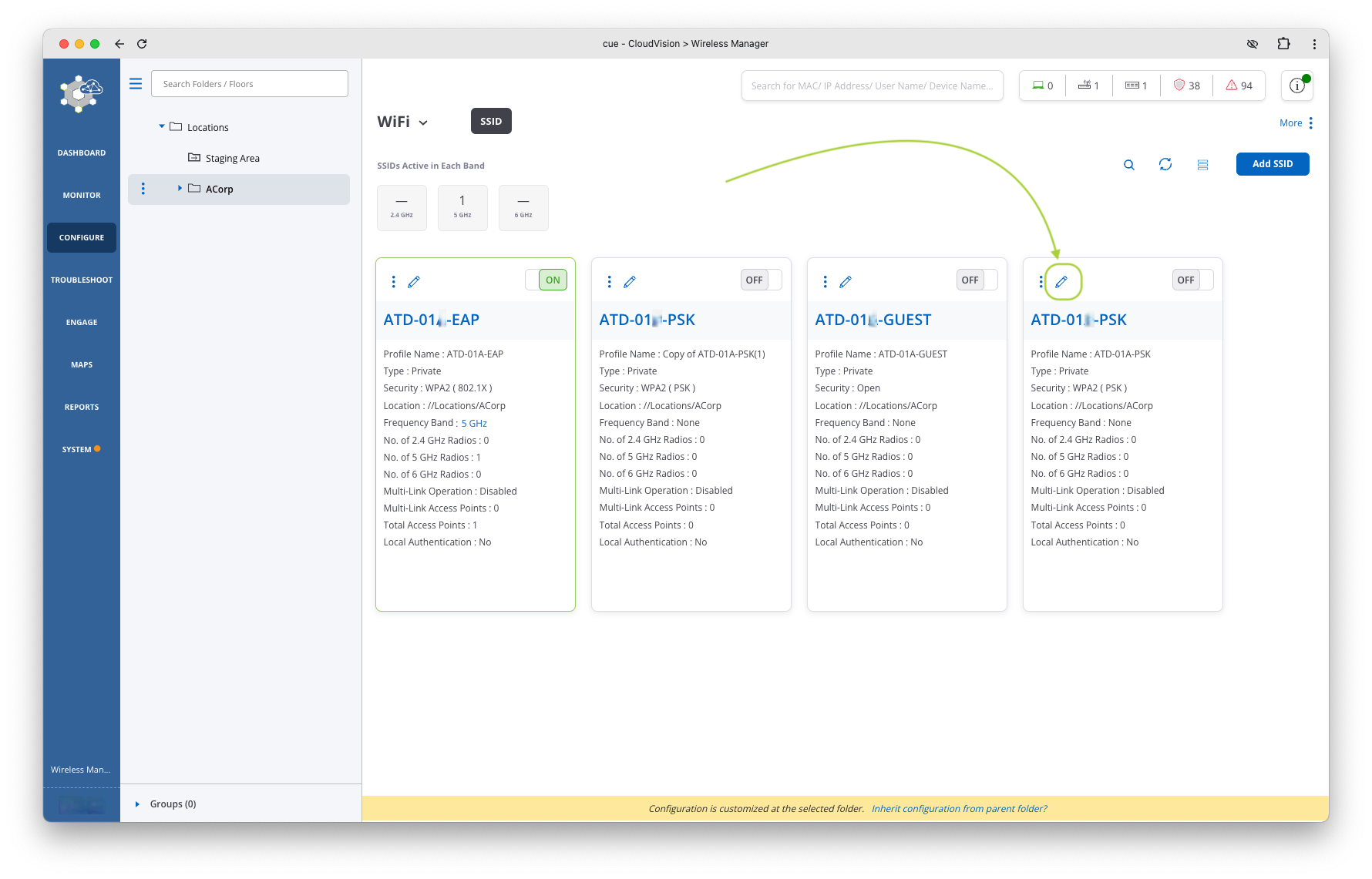

  2. Next, click on the and select Create a Copy on your specific SSID

    Your SSID
    Student Name
    Student 1 ATD-##-PSK
    Student 2 ATD-##-PSK

    where ## is a 2 digit character between 01-12 that was assigned to your lab/Pod

    Wireless EAP-TLS

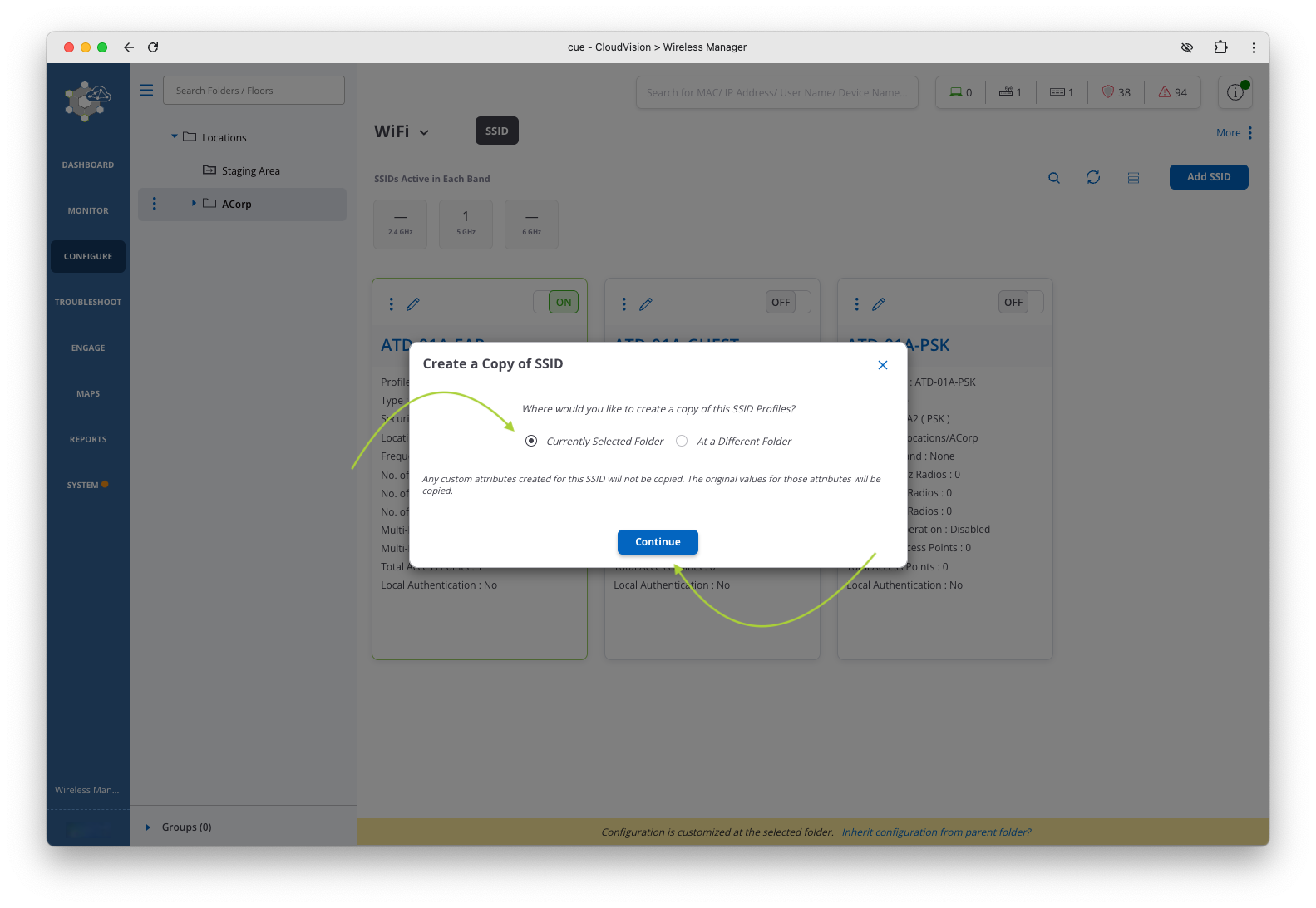

  3. Select Currently Selected Folders and then Continue.

    Wireless EAP-TLS

  4. Click on the new SSID and select Edit

    Wireless EAP-TLS

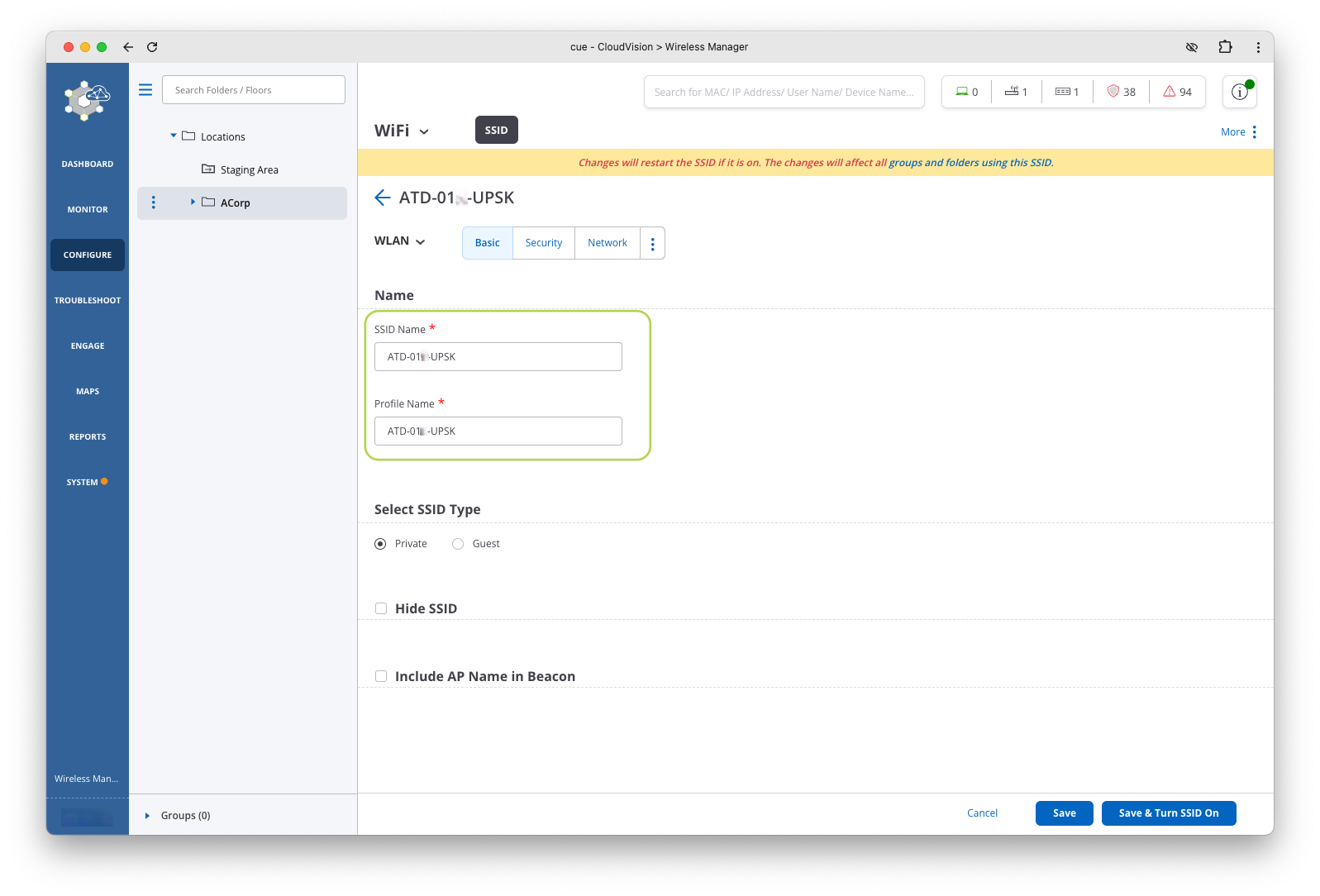

  5. On the Basic Tab rename the SSID to the following

    Settings
    Student Student 1 Student 2
    Name ATD-##-UPSK ATD-##-UPSK
    Profile Name ATD-##-UPSK ATD-##-UPSK

    Wireless EAP-TLS

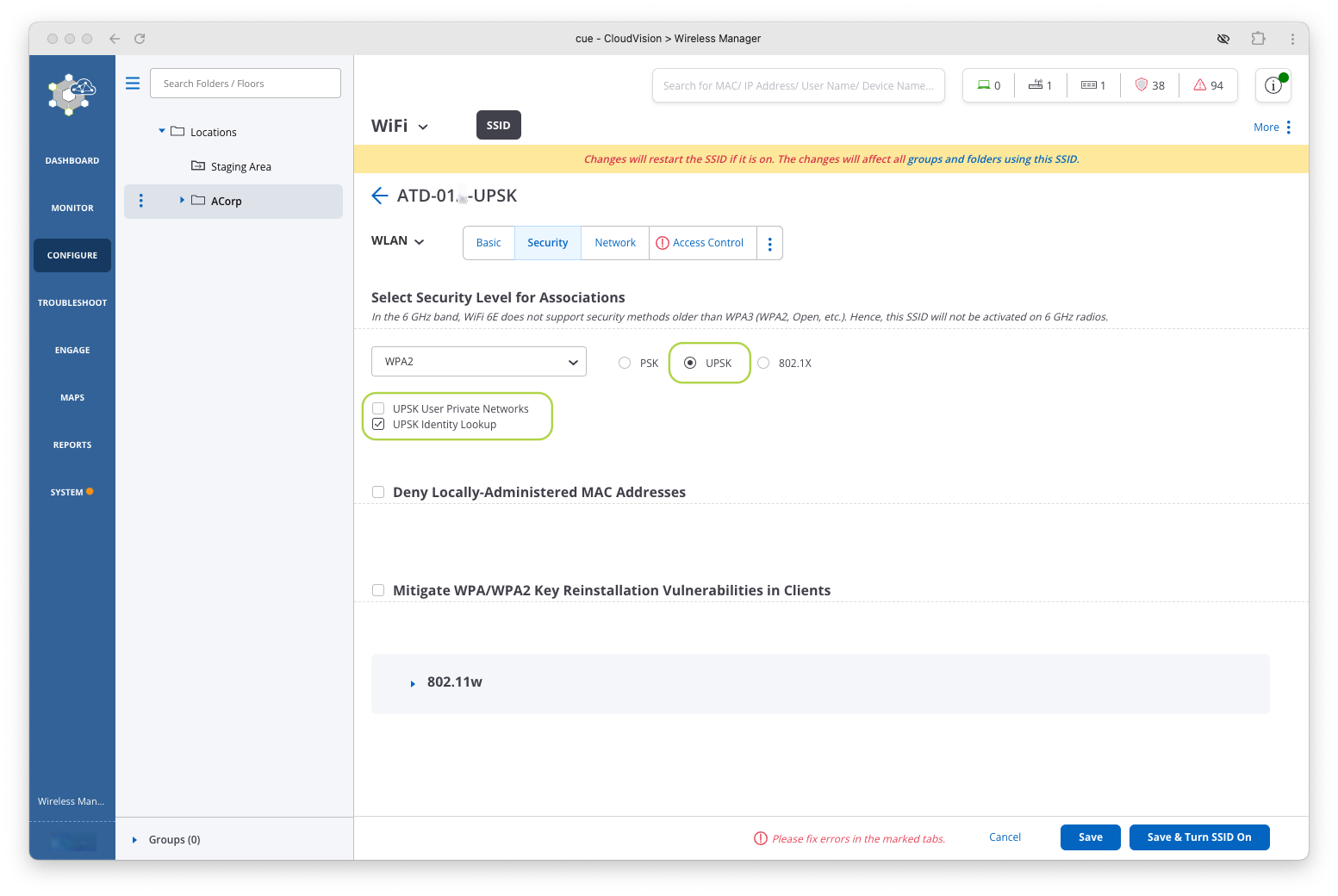

  6. Next, click on the Security tab and configure the following

    UPSK Information

    For more information on UPSK visit the article on Unique PSK

    Settings
    Field Value
    Security Method WPA2 / UPSK
    UPSK Identity Lookup Enabled

    Wireless EAP-TLS

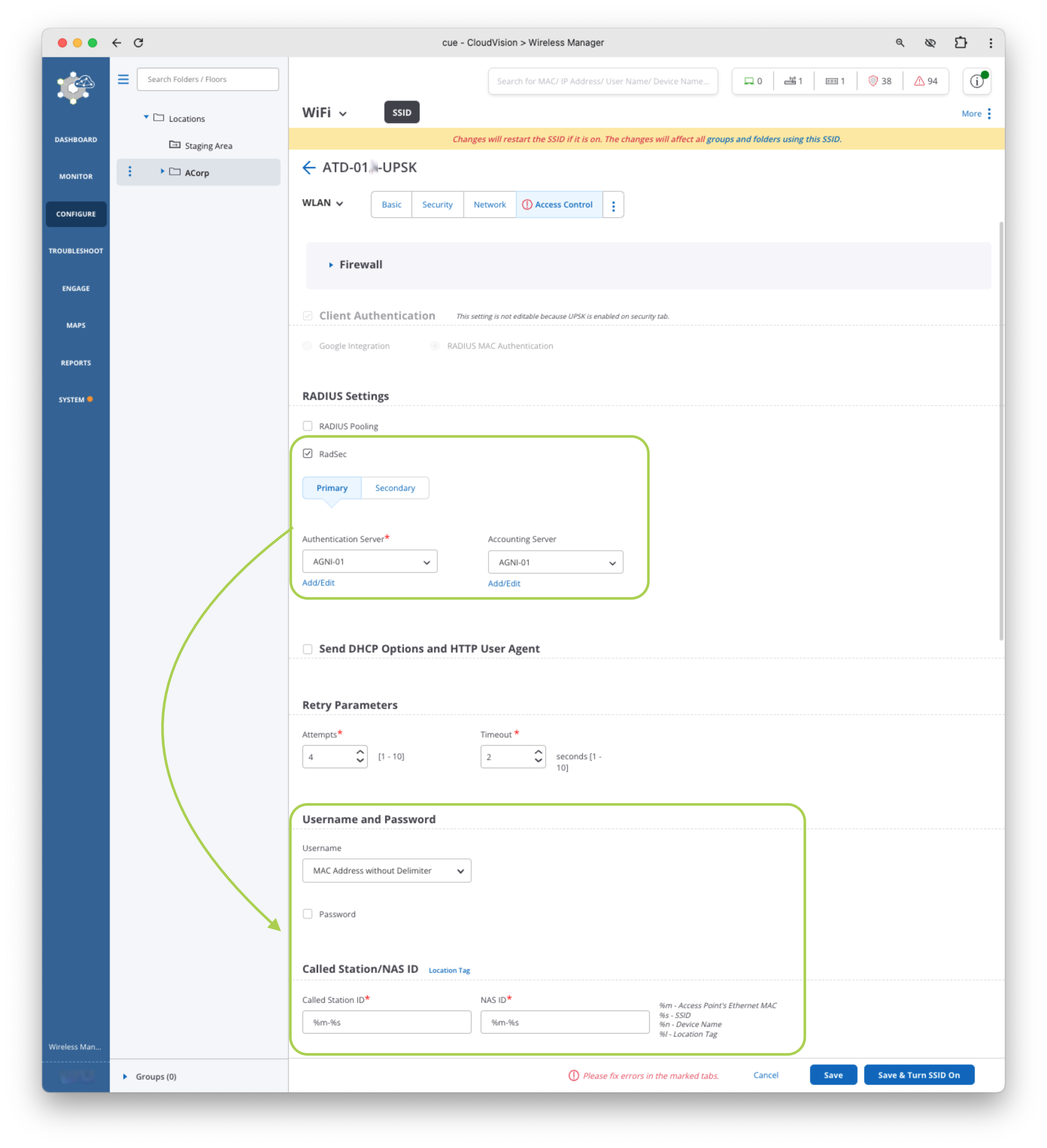

  7. Next, click on the Access Control tab and configure the following

    Settings
    Field Value
    Radius Settings Select RadSec
    Authentication Server AGNI-##
    Accounting Server AGNI-##
    Username and Password MAC Address without Delimiter
    Call Station ID %m-%s
    Change of Authorization Enabled

    Wireless EAP-TLS

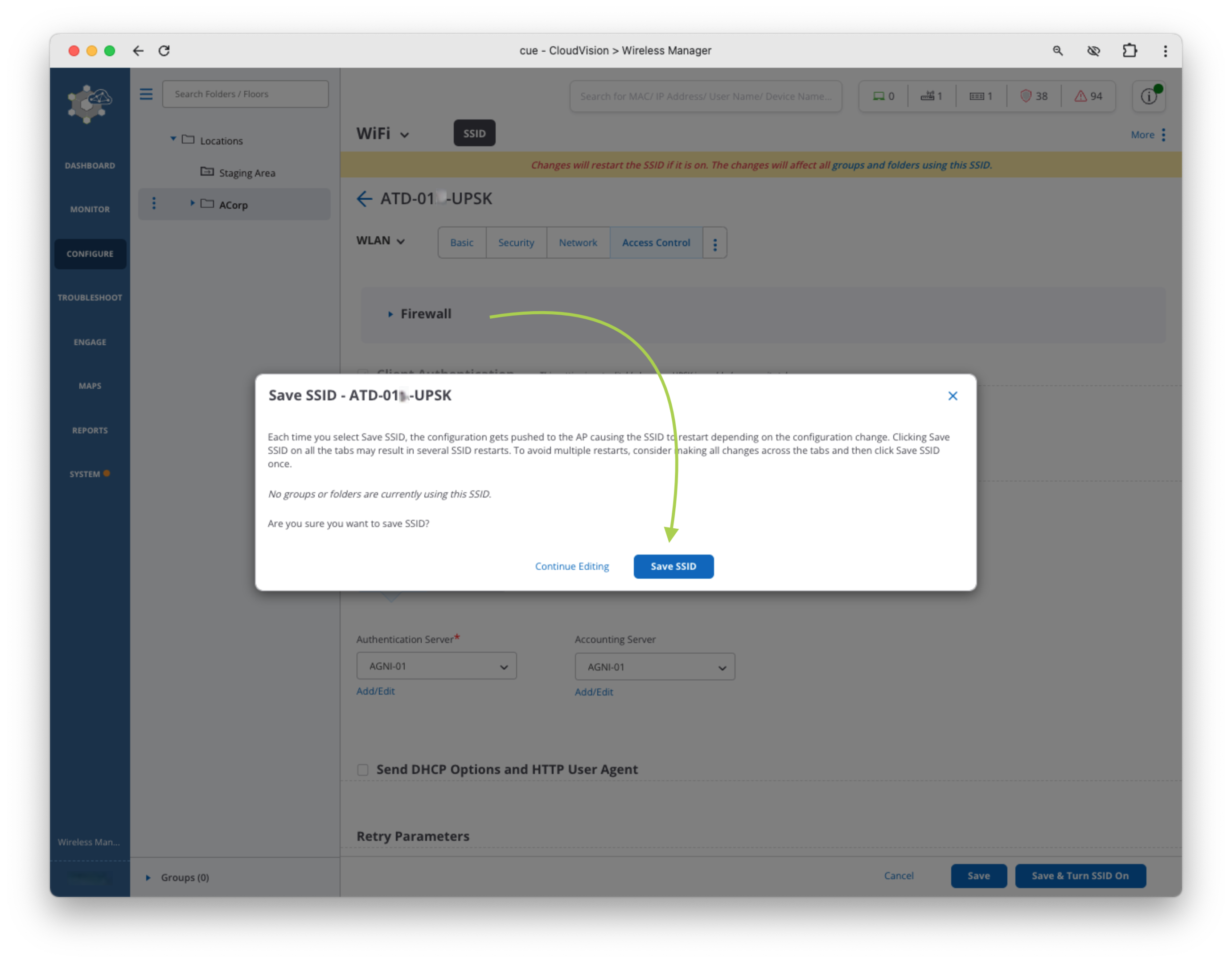

  8. Finally, Save and turn on the SSID and Save SSID

    Wireless EAP-TLS

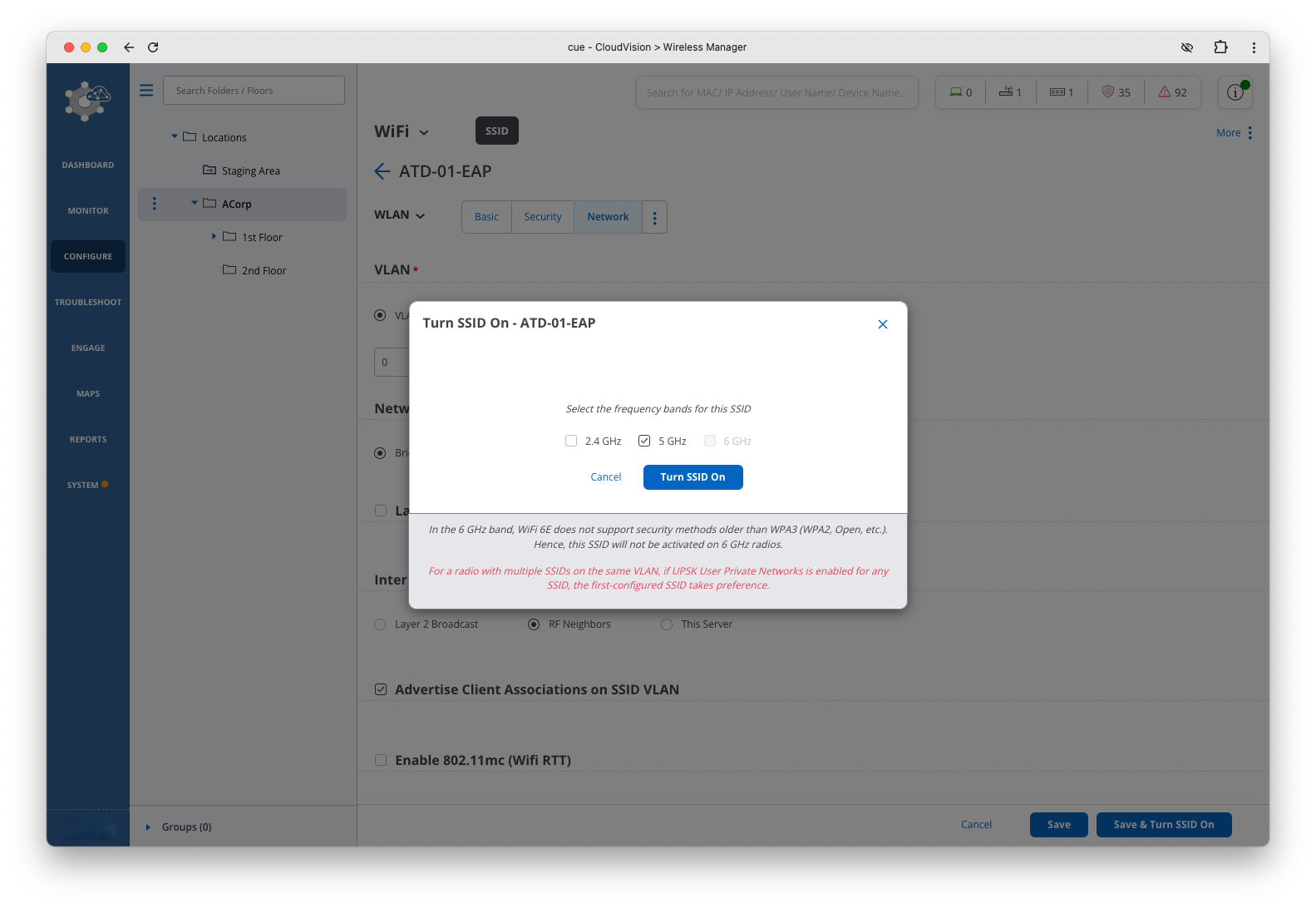

  9. Only select the 5 GHz option on the next screen (deselect the 2.4 GHz box if it’s checked), then click Turn SSID On.

    Wireless EAP-TLS

AGNI Login

If you're not already logged into AGNI, navigate to the Arista Launchpad for your lab.

Open Launchpad

Provide your assigned lab/pod email address and password and clieck Sign In

Launchpad Login

You will see the various tools tied to your tenant, this includes CVP, AGNI (NAC), and CV-CUE for wireless. Click into AGNI (Beta) tile to begin this lab.

Launchpad Login

Create UPSK Network and Segment

In this section we are going to configure AGNI for our new SSID network and apply segmentation policy to enforce UPSK.

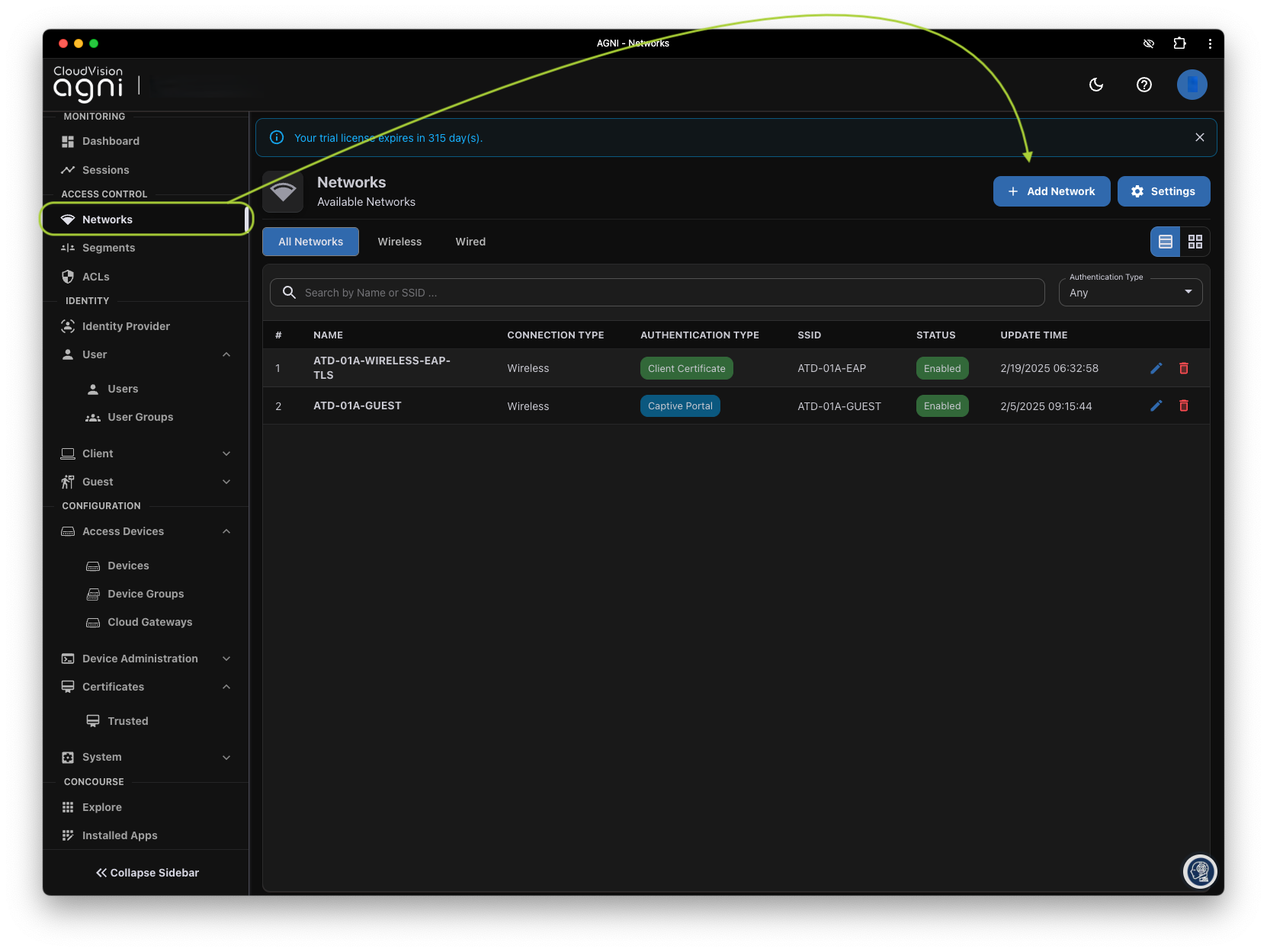

  1. Click on Networks and then + Add Network.

    Wireless EAP-TLS

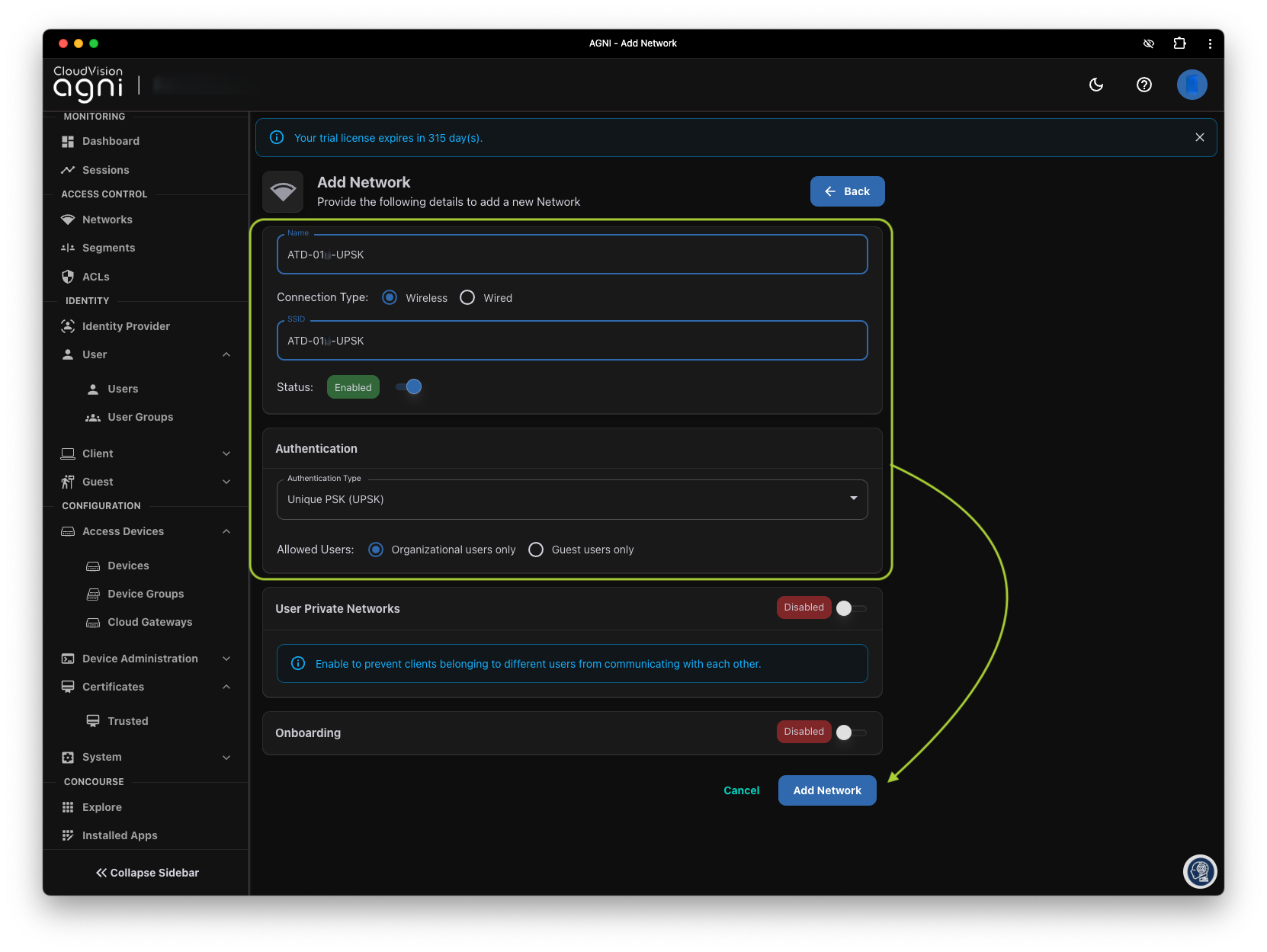

  2. Add the following:

    Settings
    Field Student 1 Student 2
    Name ATD-##-UPSK ATD-##-UPSK
    Connection Type Wireless Wireless
    SSID ATD-##-UPSK ATD-##-UPSK
    Authentication Type Unique PSK (UPSK) Unique PSK (UPSK)

    Wireless EAP-TLS

  3. Finally, click Add Network

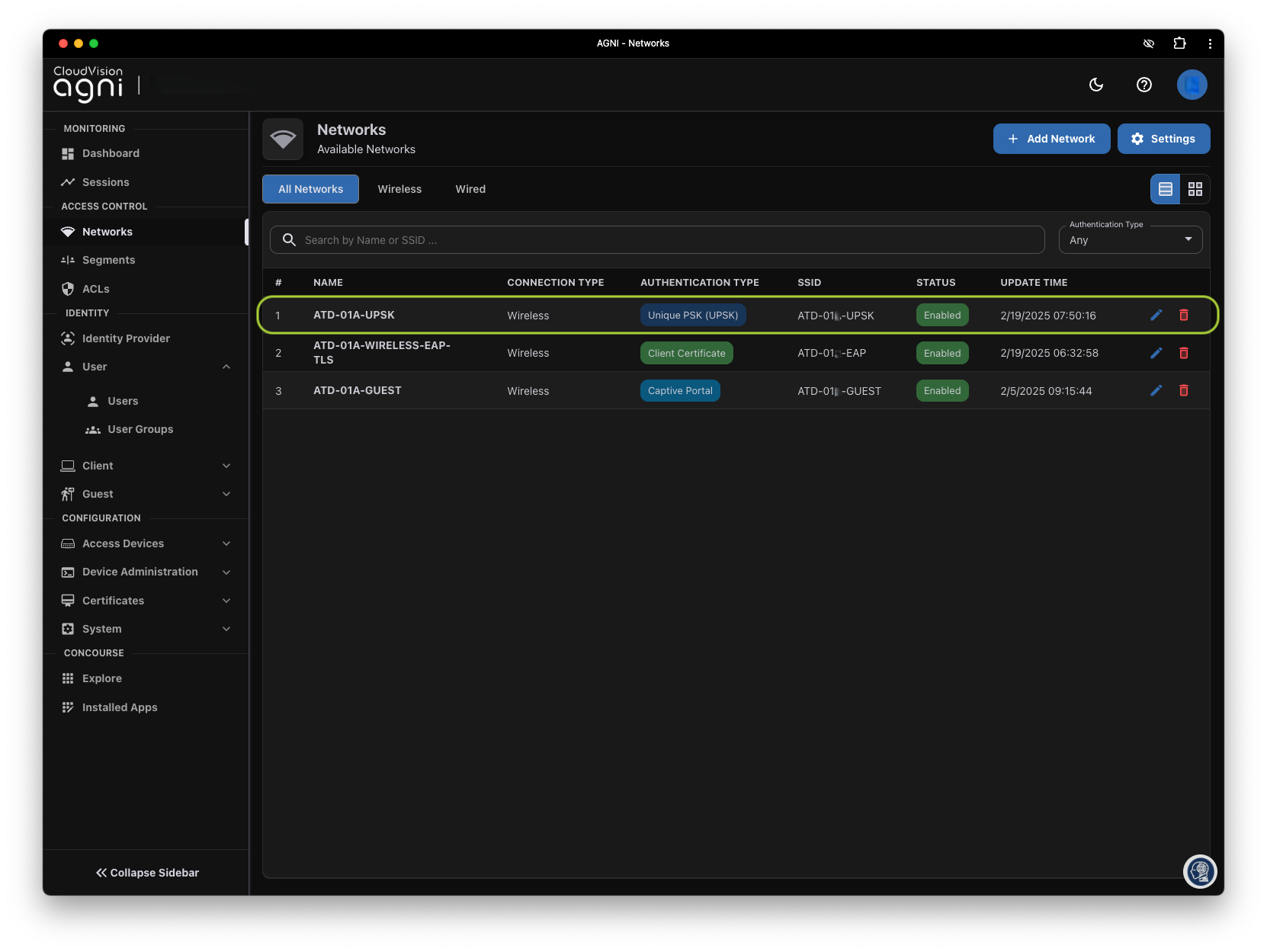

  4. You should now see this listed in your Networks.

    Wireless EAP-TLS

  5. Next, we will add the Segment.

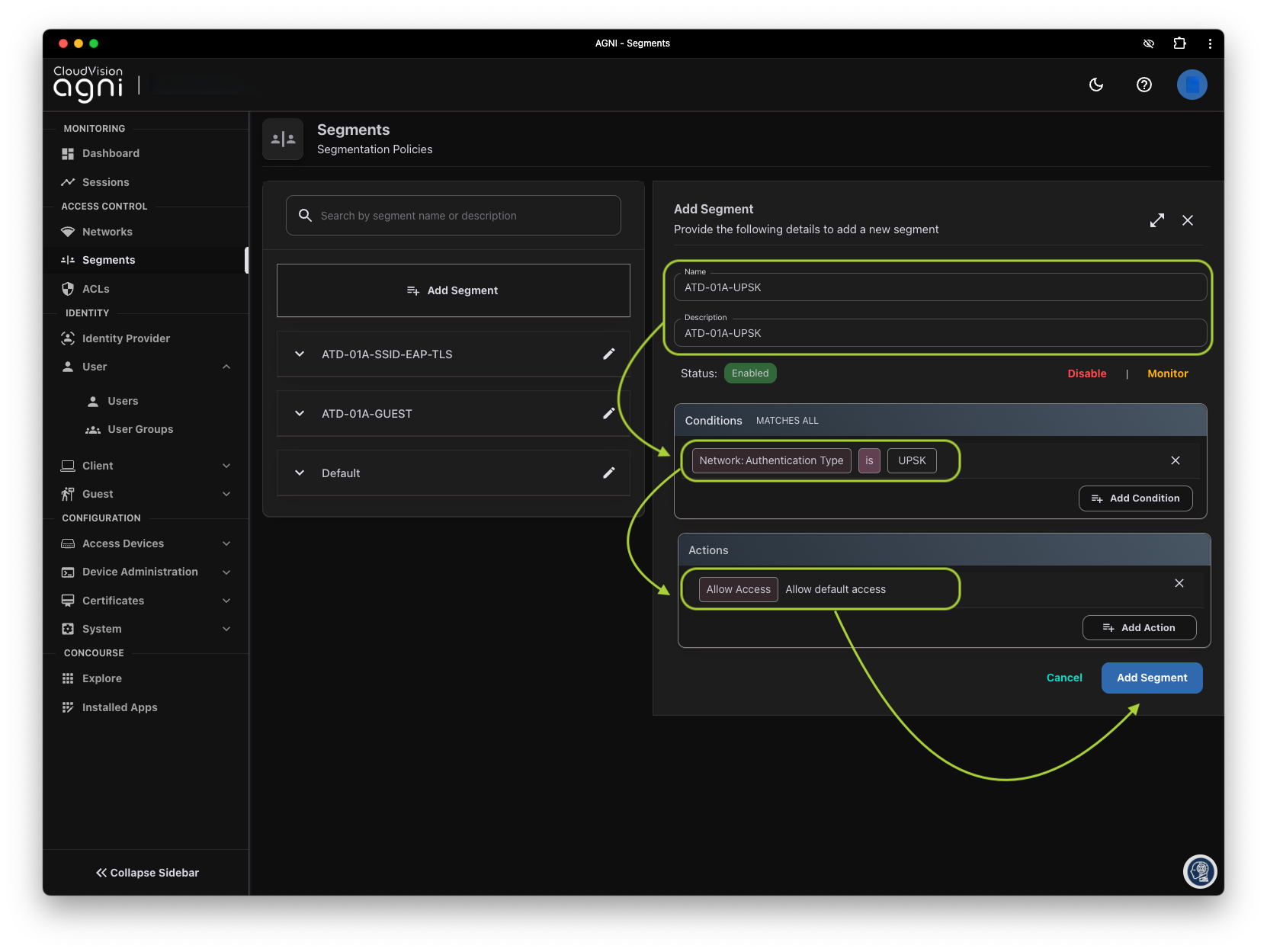

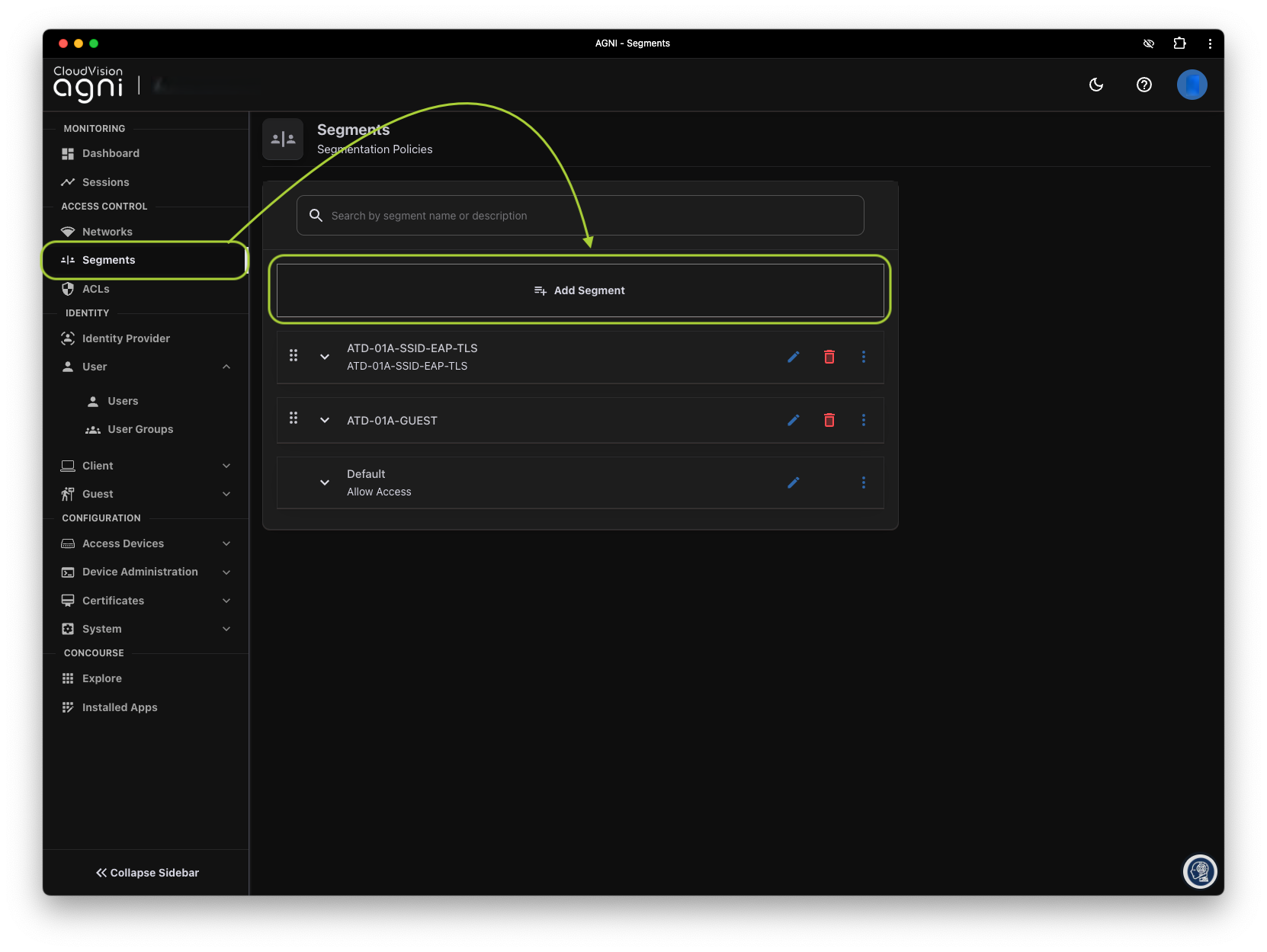

  6. Under Access Control, click on Segments and then + Add Segment

    Wireless EAP-TLS

  7. Configure the following:

    Segment Conditions

    If there are multiple conditions, they must MATCH ALL.

    Settings
    Field Student 1 Student 2
    Name ATD-##-UPSK ATD-##-UPSK
    Description ATD-##-UPSK ATD-##-UPSK
    Condition #1 Network:Name is ATD-##-UPSK Network:Name is ATD-##-UPSK
    Condition #2 Network:Authentication Type is UPSK Network:Authentication Type is UPSK
    Action #1 Allow Access Allow Access

    Wireless EAP-TLS

  8. Finally, click on Add Segment.

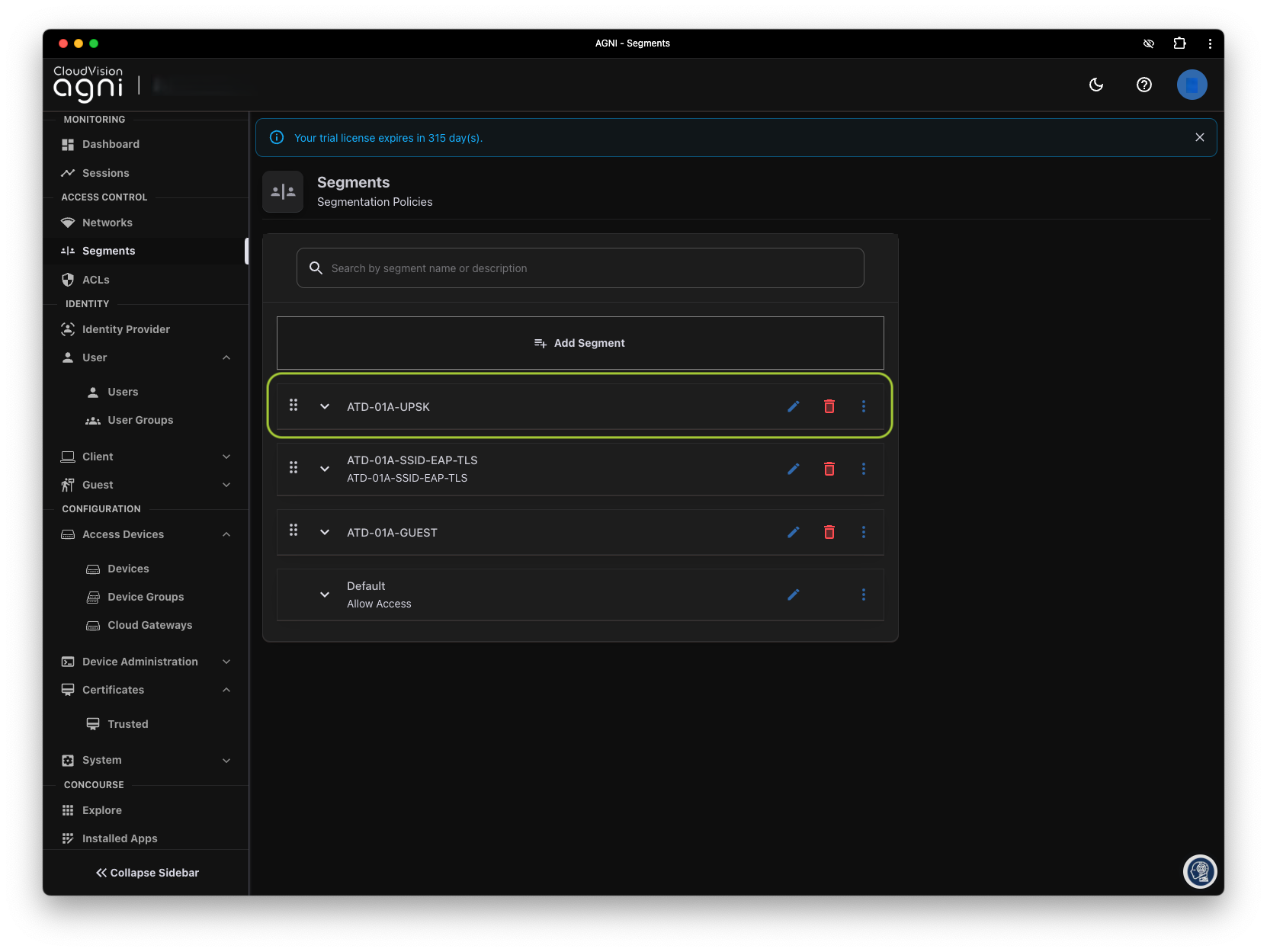

  9. You should now see your new segment in the list of segments.

    Wireless EAP-TLS

Enroll Personal Device with Local User

In this section you will create a local user and enroll the MAC of your device.

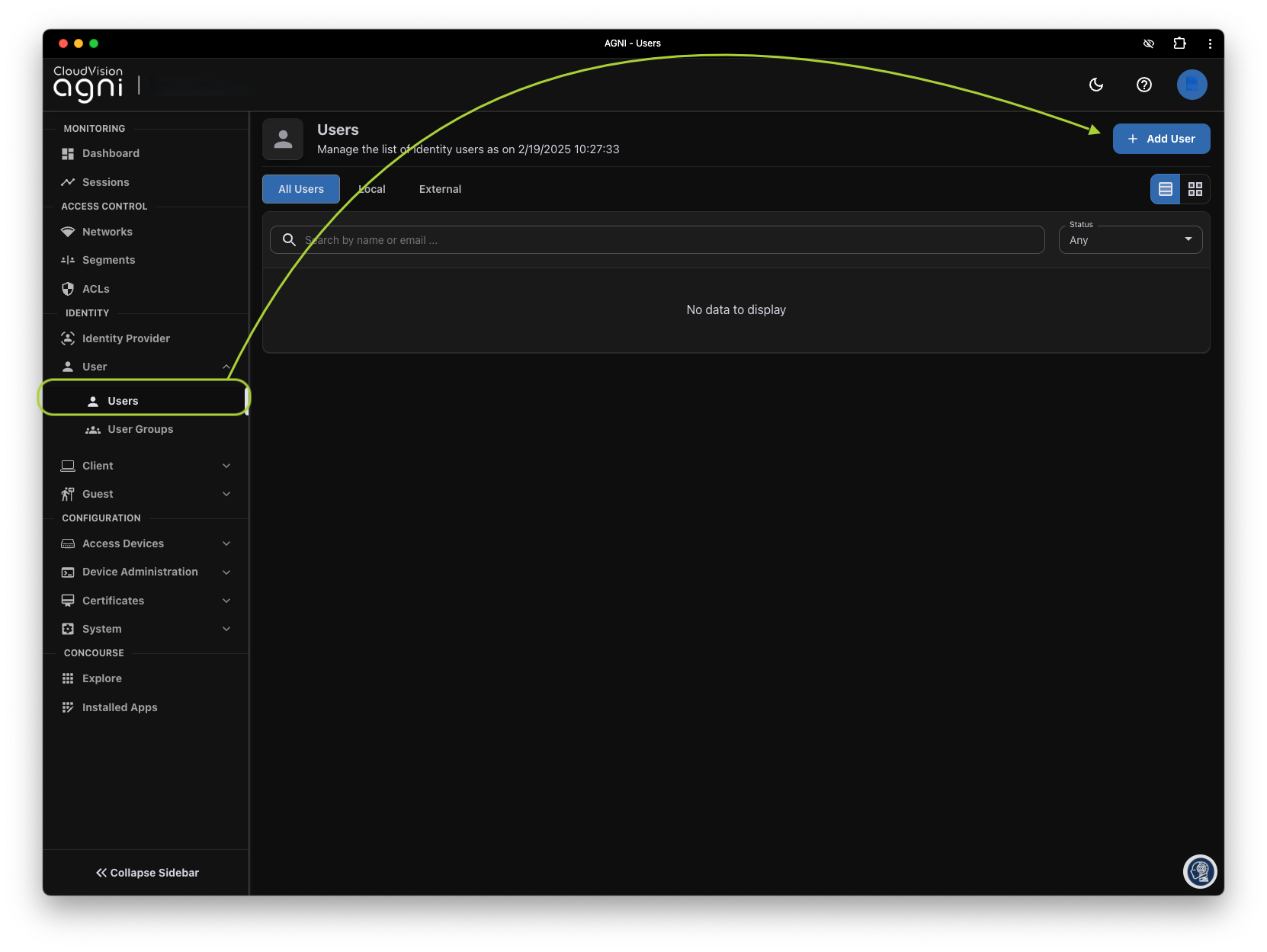

  1. In AGNI, under Identity, click on User and then + Add User.

    Wireless EAP-TLS

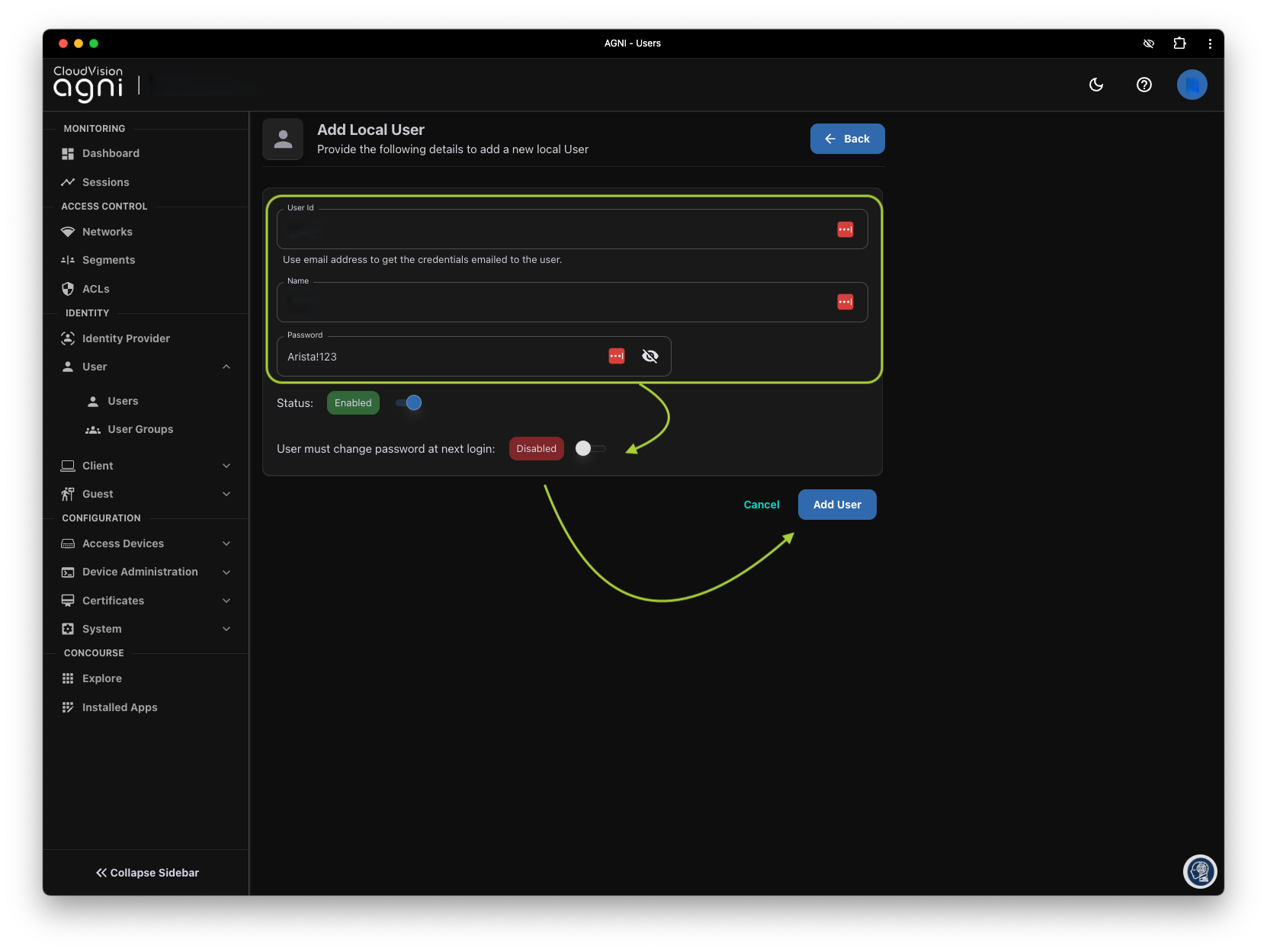

  2. Fill out the fields for a new user

    Settings
    Field Student 1 Student 2
    Name whatever_you_want whatever_you_want
    UserId whatever_you_want whatever_you_want
    Password Arista!123 Arista!123
    User must change password at next login Disabled Disabled

    Wireless EAP-TLS

  3. Click Add User

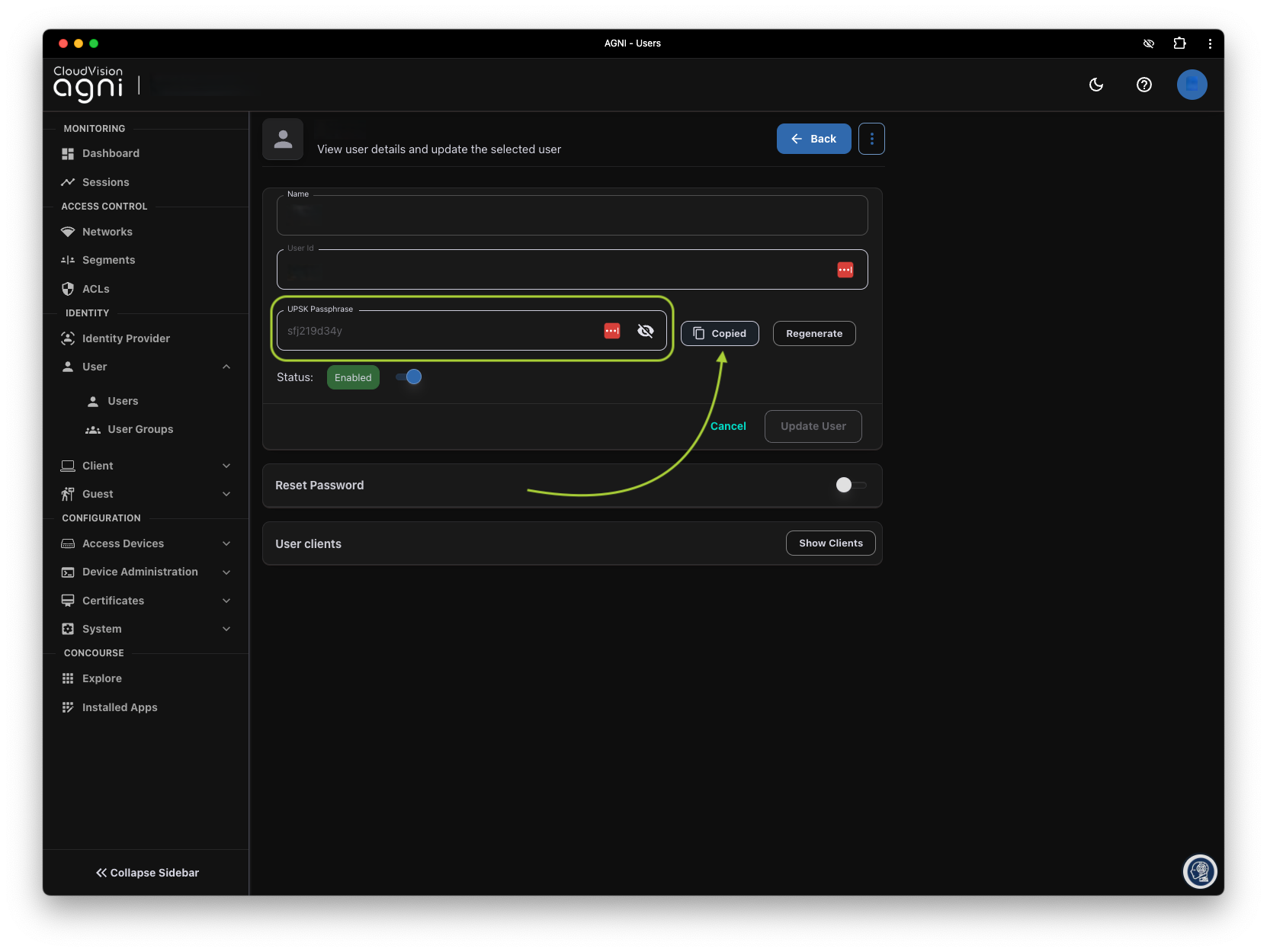

  4. You will notice that Password has now changed to UPSK Passphrase

    Wireless EAP-TLS

  5. Copy and write down or save to text file the new UPSK Passphrase.

  6. Next, connect your client to ATD-##A/B-UPSK using your UPSK Passphrase.

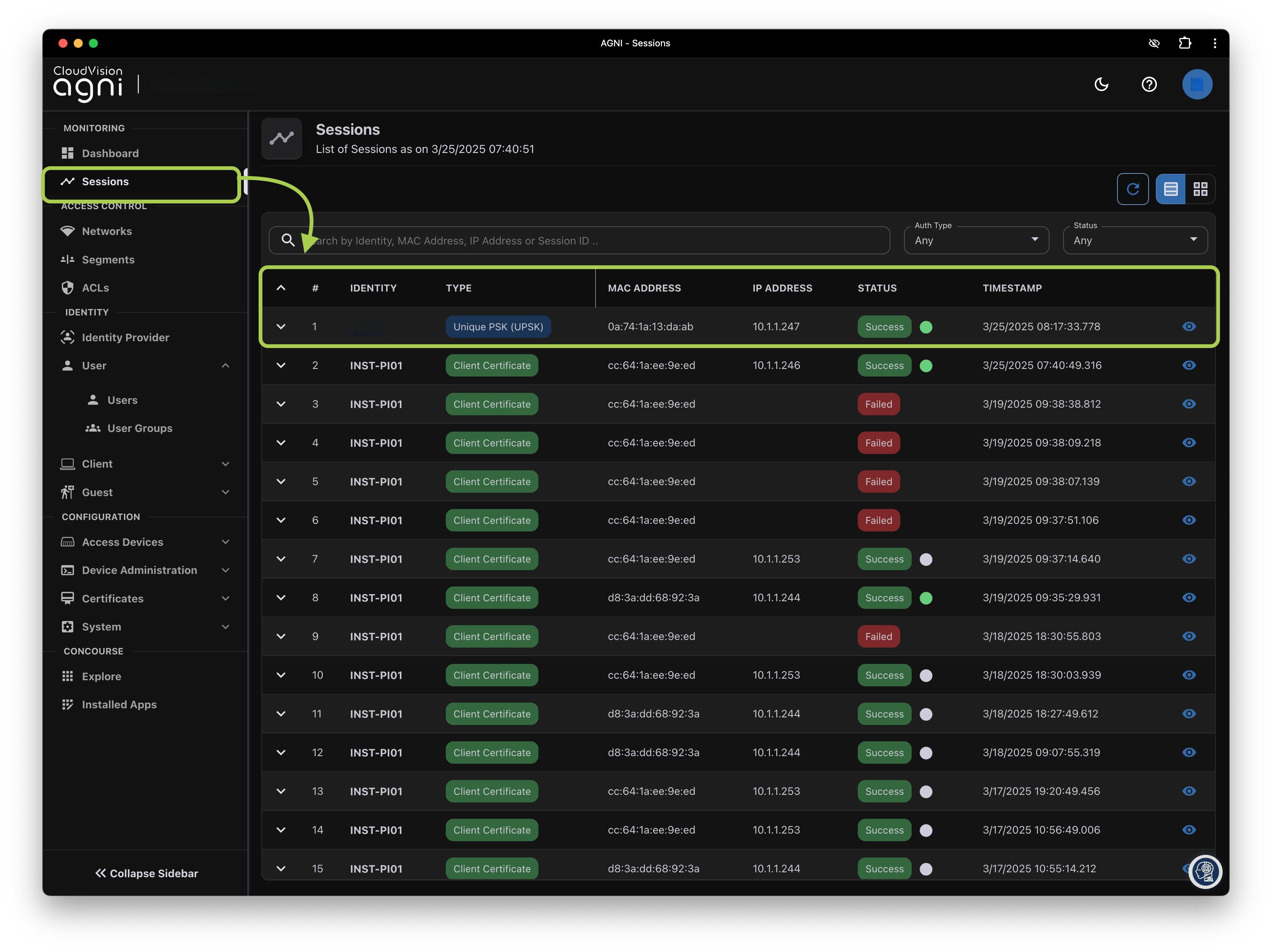

  7. Click on Sessions and validate your device connection.

    Wireless EAP-TLS

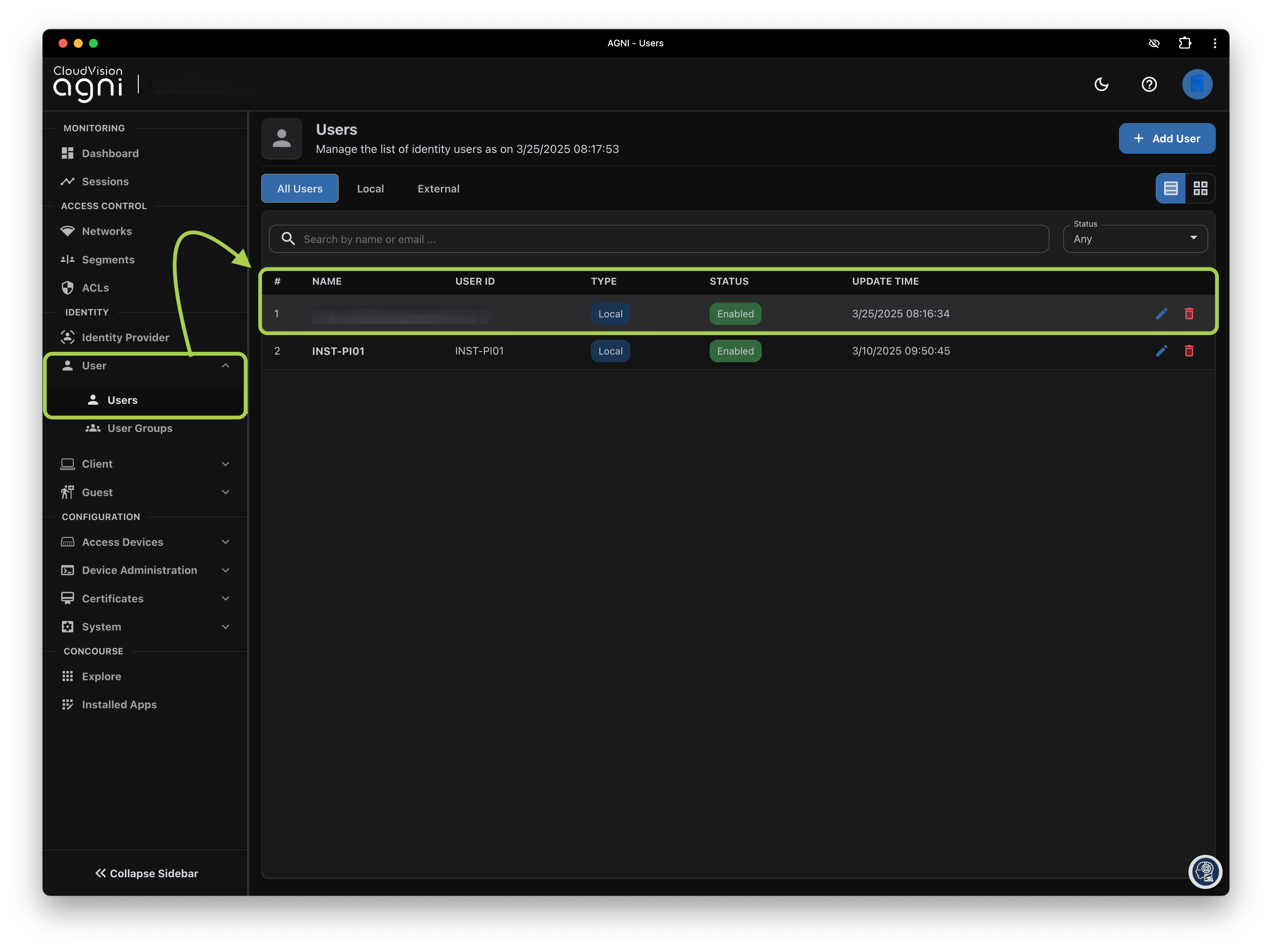

  8. Next, validate your device by clicking on User and then Users. Select your user.

    Wireless EAP-TLS

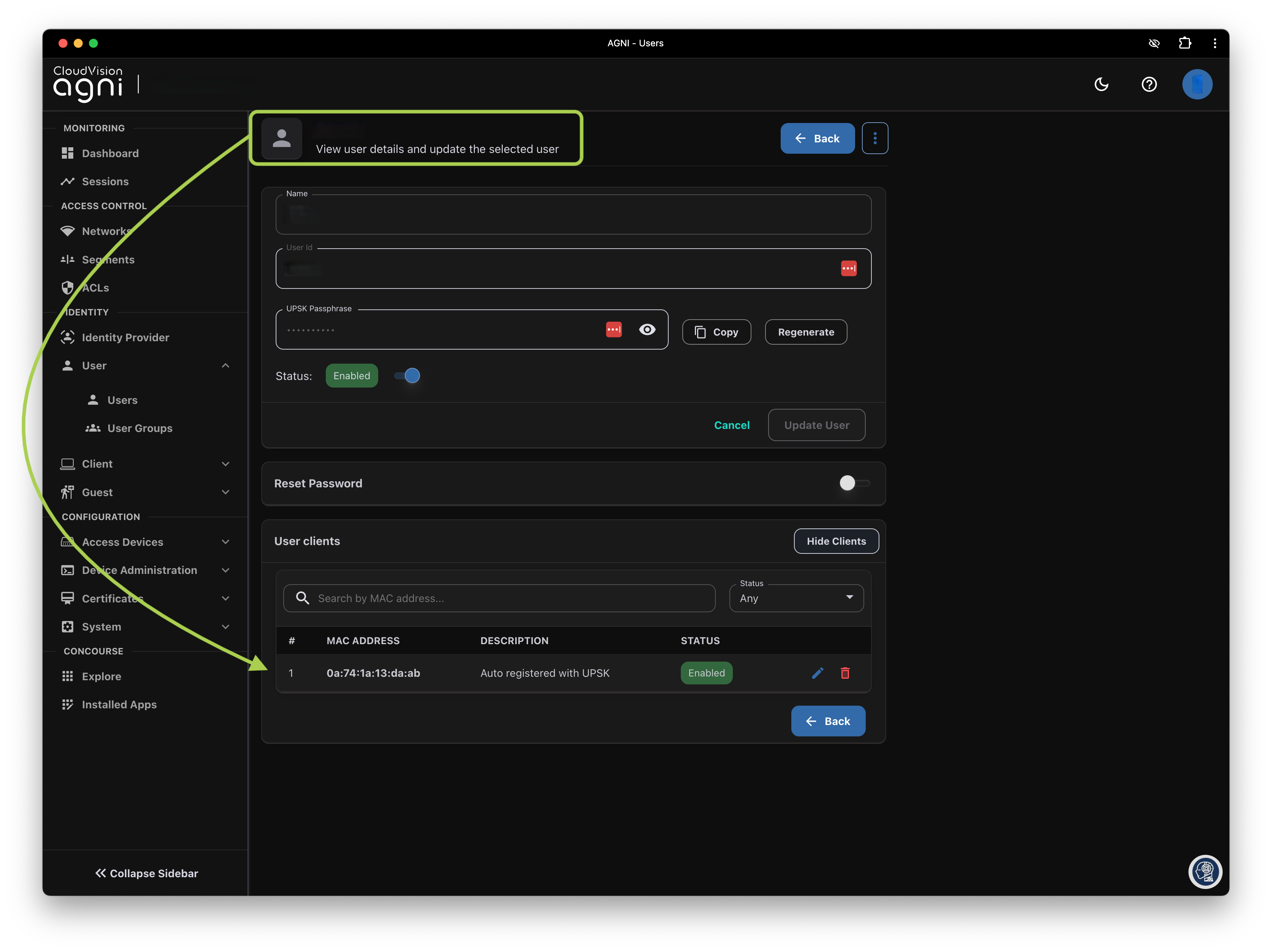

  9. Click on Show Clients

    Wireless EAP-TLS

Create an AGNI Client Group

In this section, you will simulate your device as an IoT device.

  1. Disable and forget previously saved lab networks so your wireless connection on your test device does not auto connect.

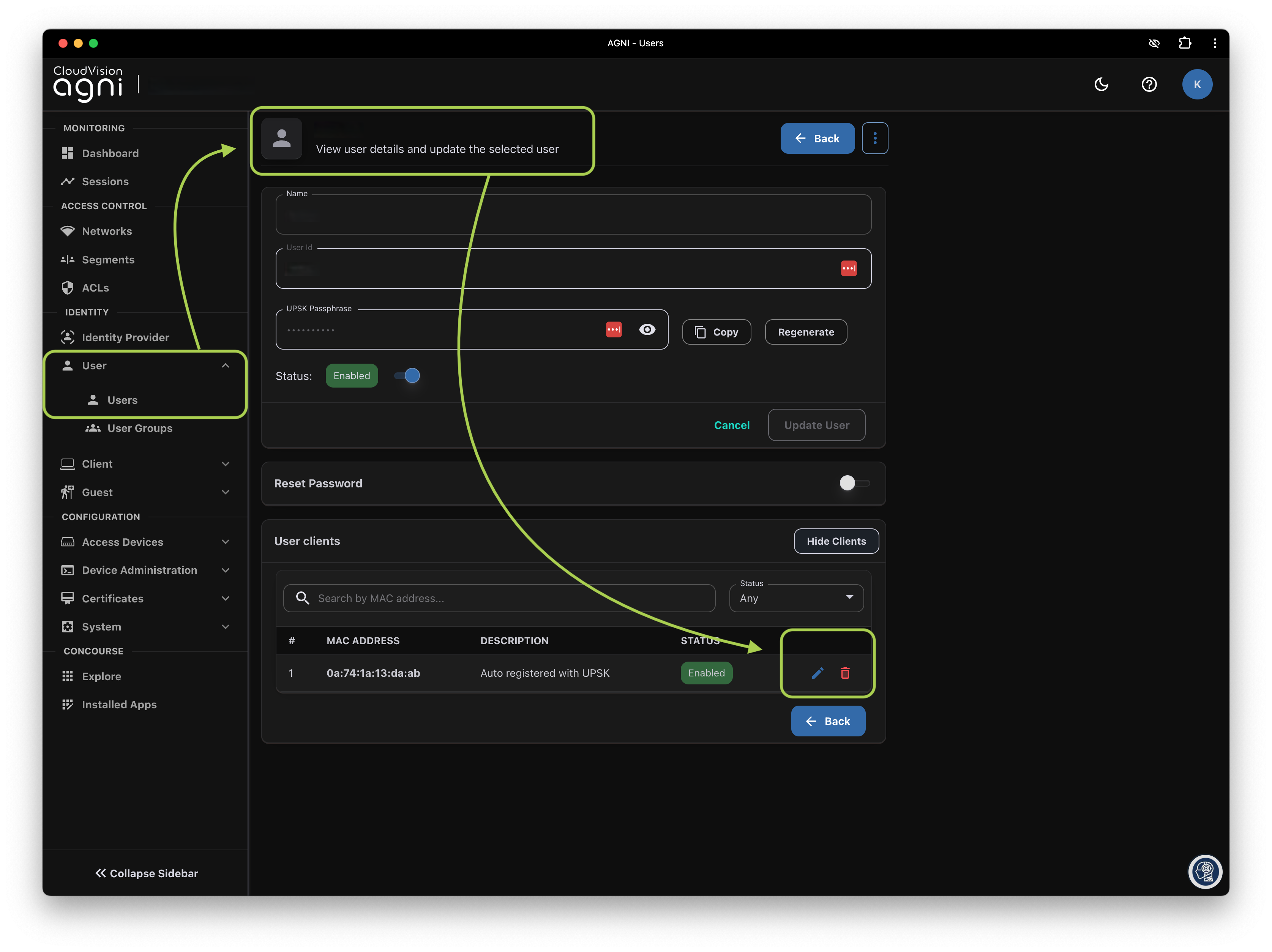

  2. In AGNI under your User Clients list, Delete your Device.

    Wireless EAP-TLS

  3. Next, you will add your client device as an IoT device in a Client Group.

  4. First, we will need to create the Client Group.
  5. In AGNI, under Identity, click on Clients > Client Groups and then + Add Client Group.

  6. Configure the following

    Settings
    Field Student 1 Student 2
    Name CorpA Approved Devices CorpA Approved Devices
    Description CorpA Approved Devices CorpA Approved Devices
    User Association Not user associated Not user associated
    Group UPSK Enabled Enabled

  7. Copy the UPSK Passphrase and click on Add Group

  8. Next, connect your client to ATD-##-UPSK using the Client Group UPSK Passphrase.

  9. Click on Sessions and validate your device connection.

  10. Next Click on your Client.

  11. Notice your Client Group. Here you have the option to change the Client Group your device belongs to.

🎉 CONGRATS! You have completed this lab! 🎉
