C-01 | AGNI and WiFi EAP-TLS 802.1X

Overview

In this lab we will be working within the WiFi configuration section of CV-CUE. Create an SSID (WPA2 802.1X) with your ATD-##-EAP as the name (where ## is a 2 digit character between 01-12 that was assigned to your lab/Pod).

CV-CUE Login

If you're not already logged into CV-CUE, navigate to the Arista Launchpad for your lab.

Open Launchpad

Login Step 1Login Step 2

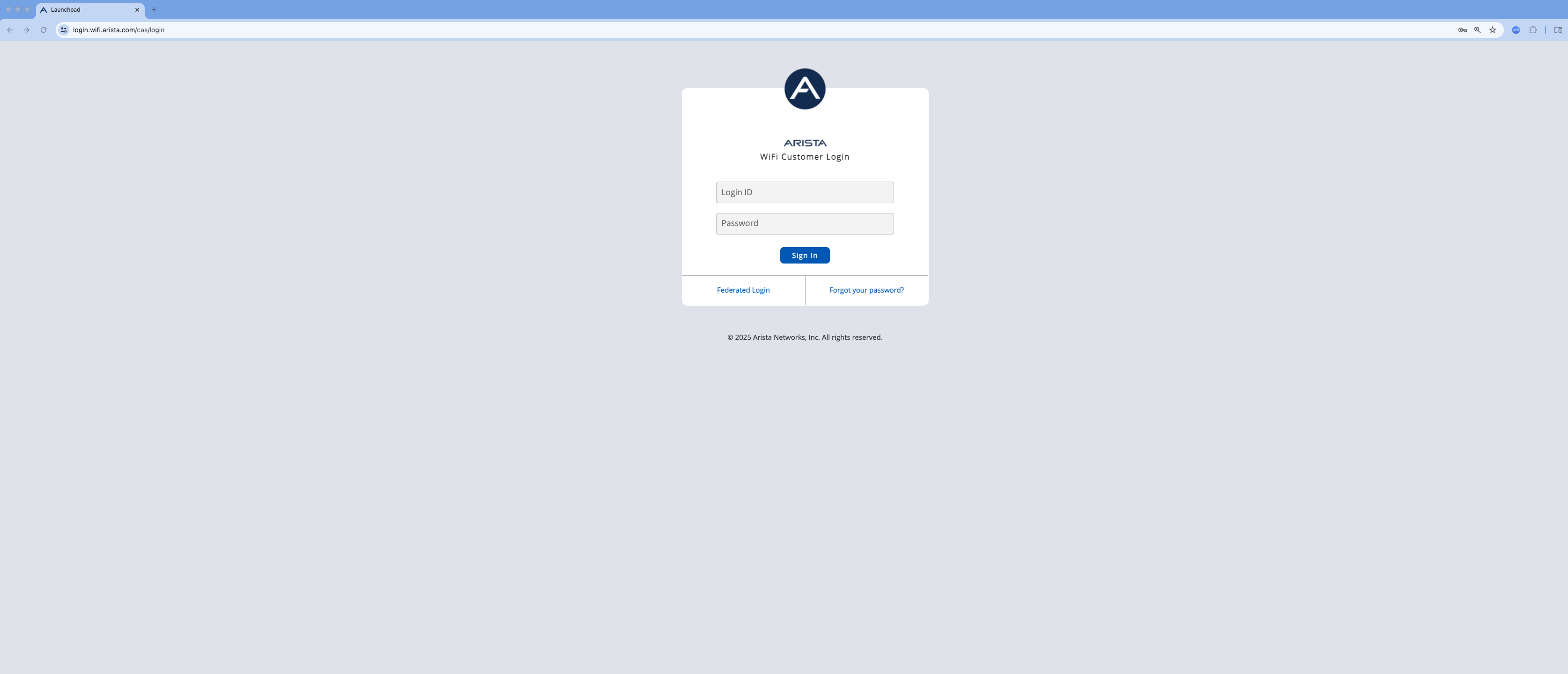

Provide your assigned lab/pod email address and password and click Sign In

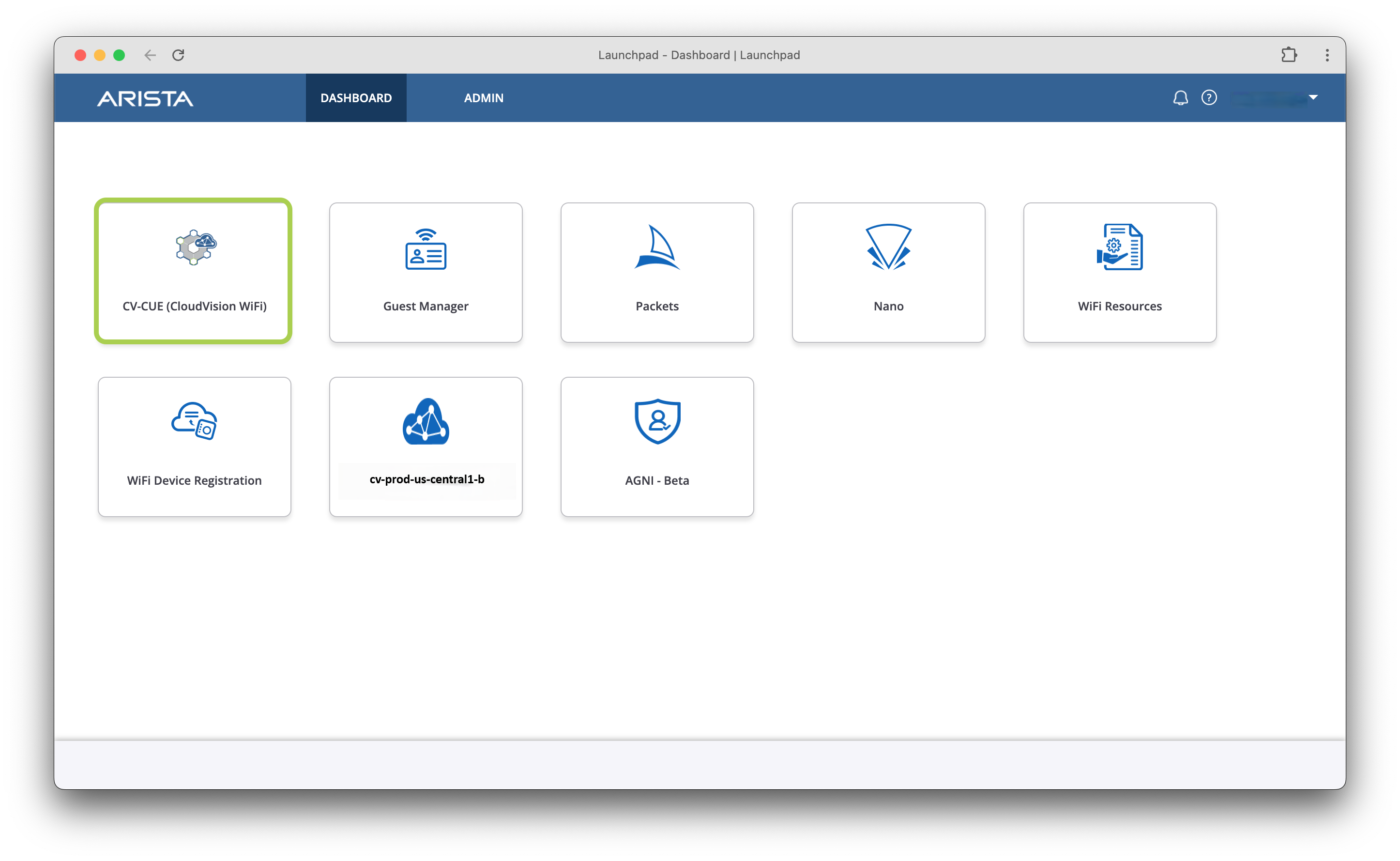

You will see the various tools tied to your tenant, this includes CVP, AGNI (NAC), and CV-CUE for wireless. Click into CV-CUE (CloudVision WiFi) tile to begin this lab.

Create an EAP-TLS SSID

The Configure section of CV-CUE is composed of multiple parts, including WiFi, Alerts, WIPS, etc. In this lab we are focused on the WiFi section.

Other configuration sections

• Alerts: Where syslog and other alert related settings are configured
• WIPS: Where the policies are configured for the WIPS sensor.

1. Let's go through the steps to create a new SSID

   Step 1Step 2Step 3Step 4

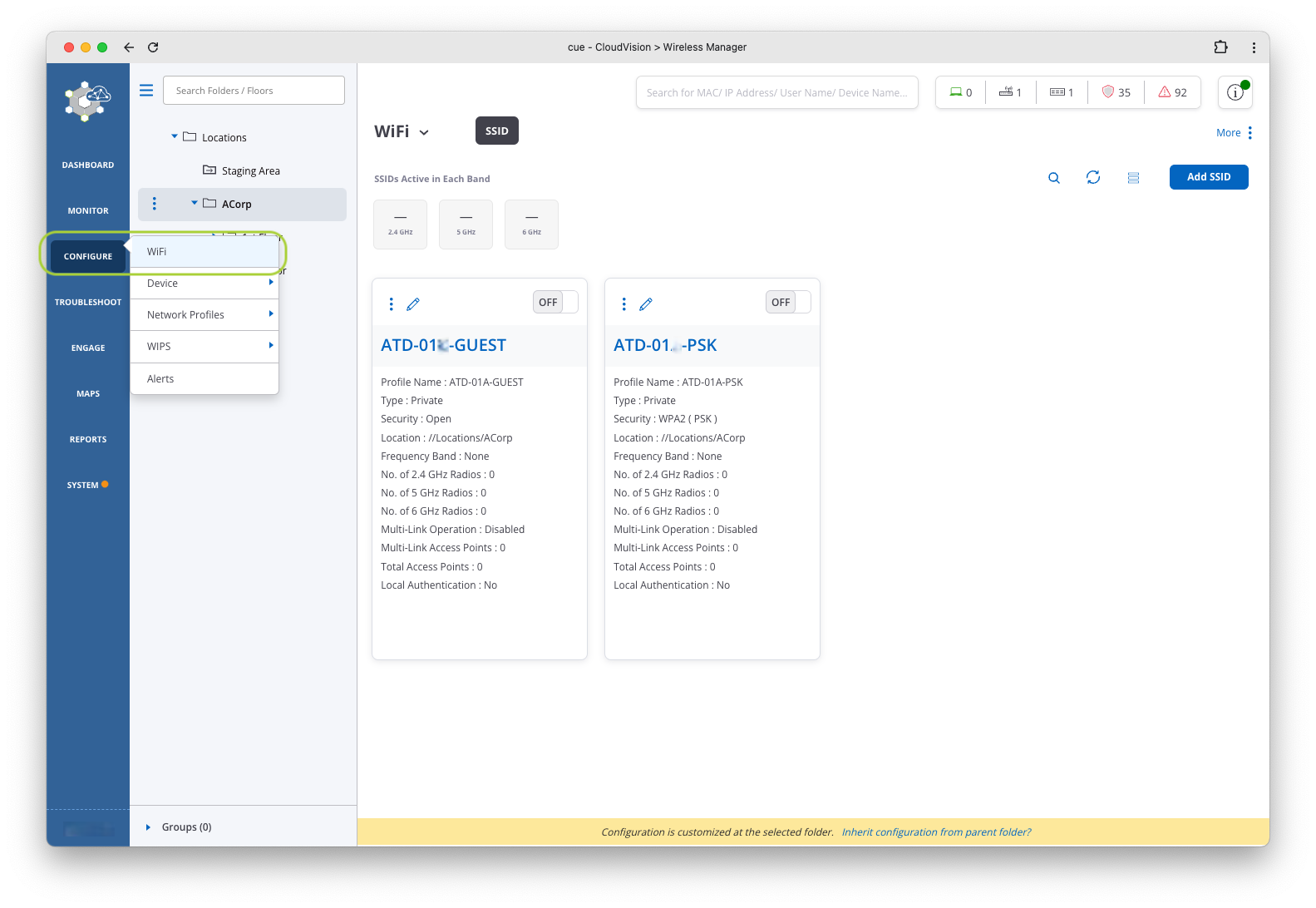

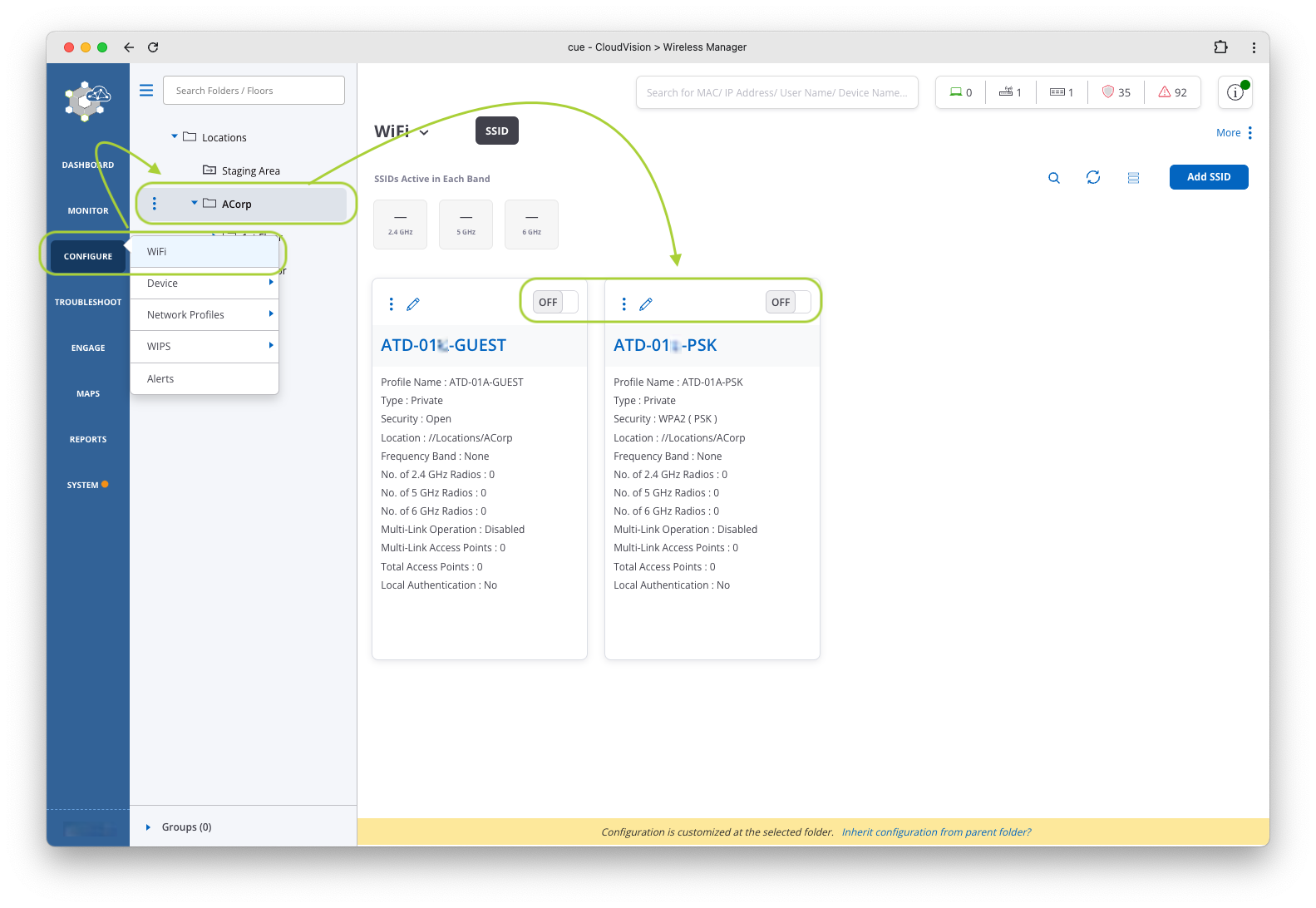

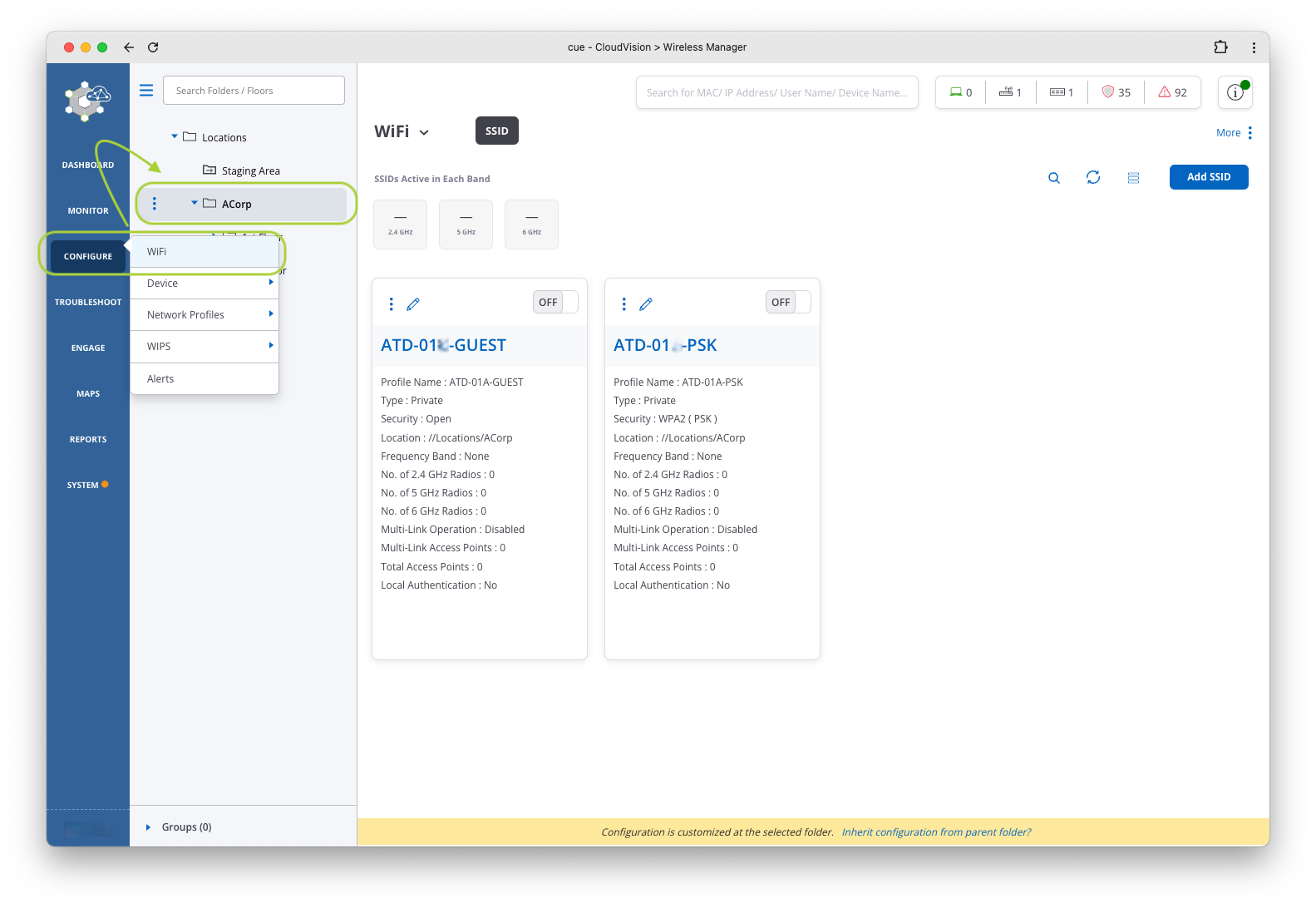

   Hover your cursor over the Configure menu option on the left side of the screen, then click WiFi



   At the top of the screen, you will see where you are in the location hierarchy. Click on your respective Corp (ACorp or BCorp),



   Expand Hierarchy

   If you do not see the hierarchy, click on the three lines next to Locations to expand choose/highlight the appropriate Corp folder.

   Let's disable the previous SSIDs from the prior labs bey toggling the On/Off button



   Now click the Add SSID button on the right hand side of the screen.



2. Once on the “SSID” page, configuration sub-category menu options will appear across the top of the page related to WiFi (the defaults are Basic, Security, and Network). You can click on these sub-category names to change configuration items related to that area of the configuration.

3. To make additional categories visible, click on the 3 dots next to Network and you can see the other categories that are available to configure (Analytics, Captive Portal, etc.).

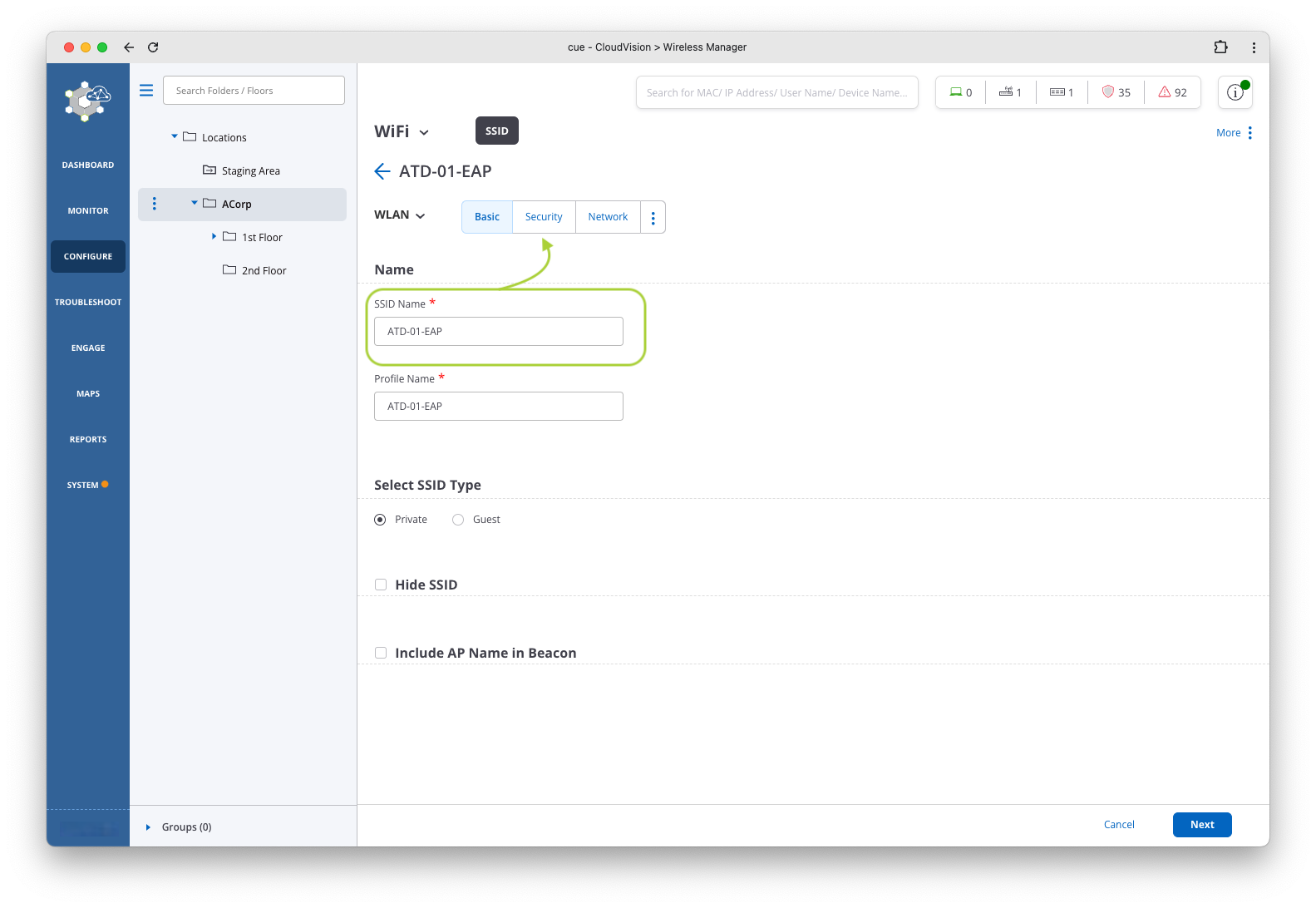

4. In the Basic sub-category option, name the SSID using the settings below. The Profile Name is used to describe the SSID and should have been auto-filled for you.

   Settings

   Student	Name
   Student 1	ATD-##-EAP
   Student 2	ATD-##-EAP

   where ## is a 2 digit character between 01-20 that was assigned to your lab/Pod



5. Since this is our corporate SSID, leave the Select SSID Type set to Private

6. Select Next at the bottom.

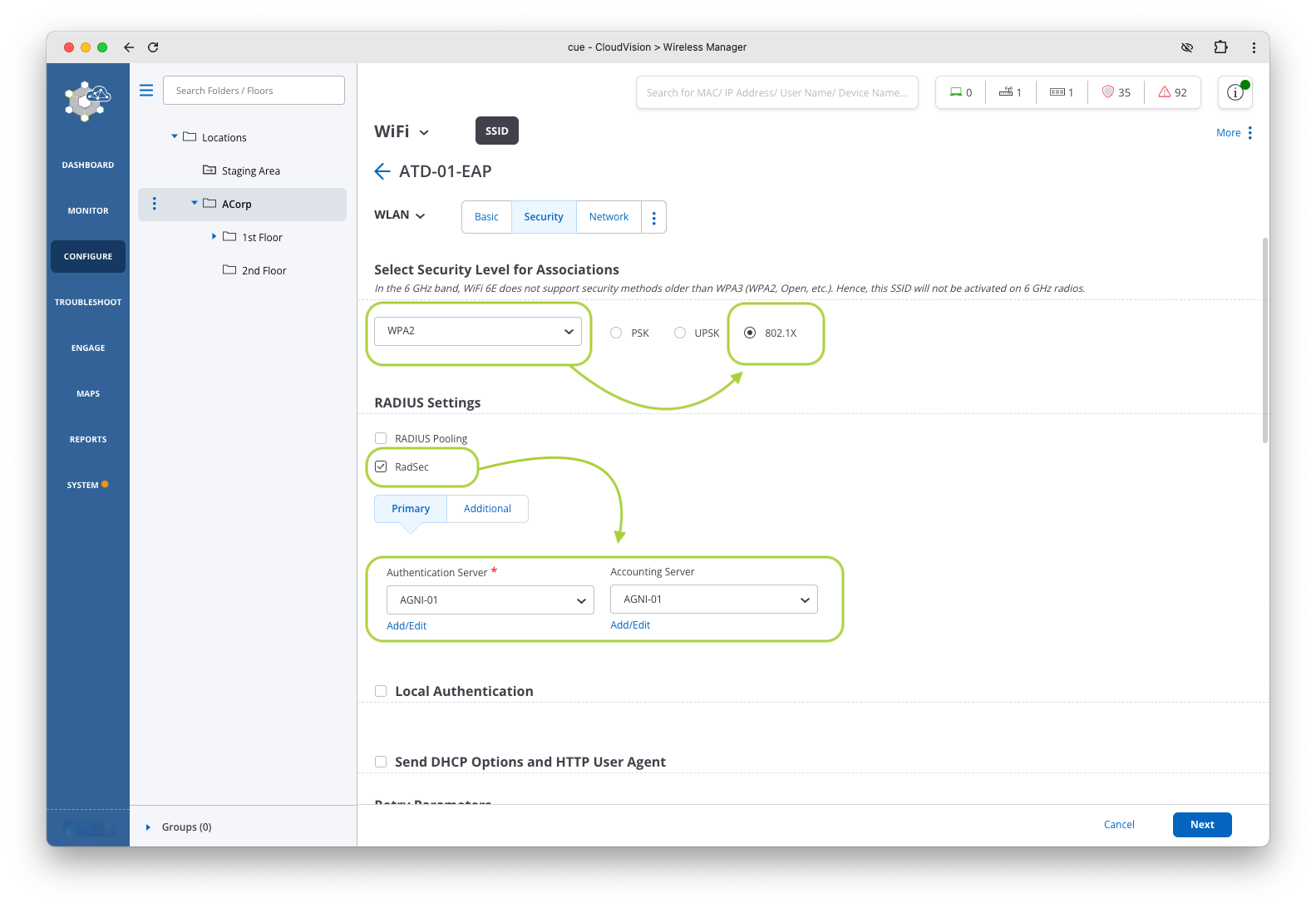

7. In the Security sub-category, set the following select WPA2 and change the association type to “802.1X”.

   Settings

   Field	Value
   Security Method	WPA2 / 802.1X
   Radius Settings	Select RadSec
   Authentication Server	AGNI-##
   Accounting Server	AGNI-##



8. Select Next at the bottom of the screen.

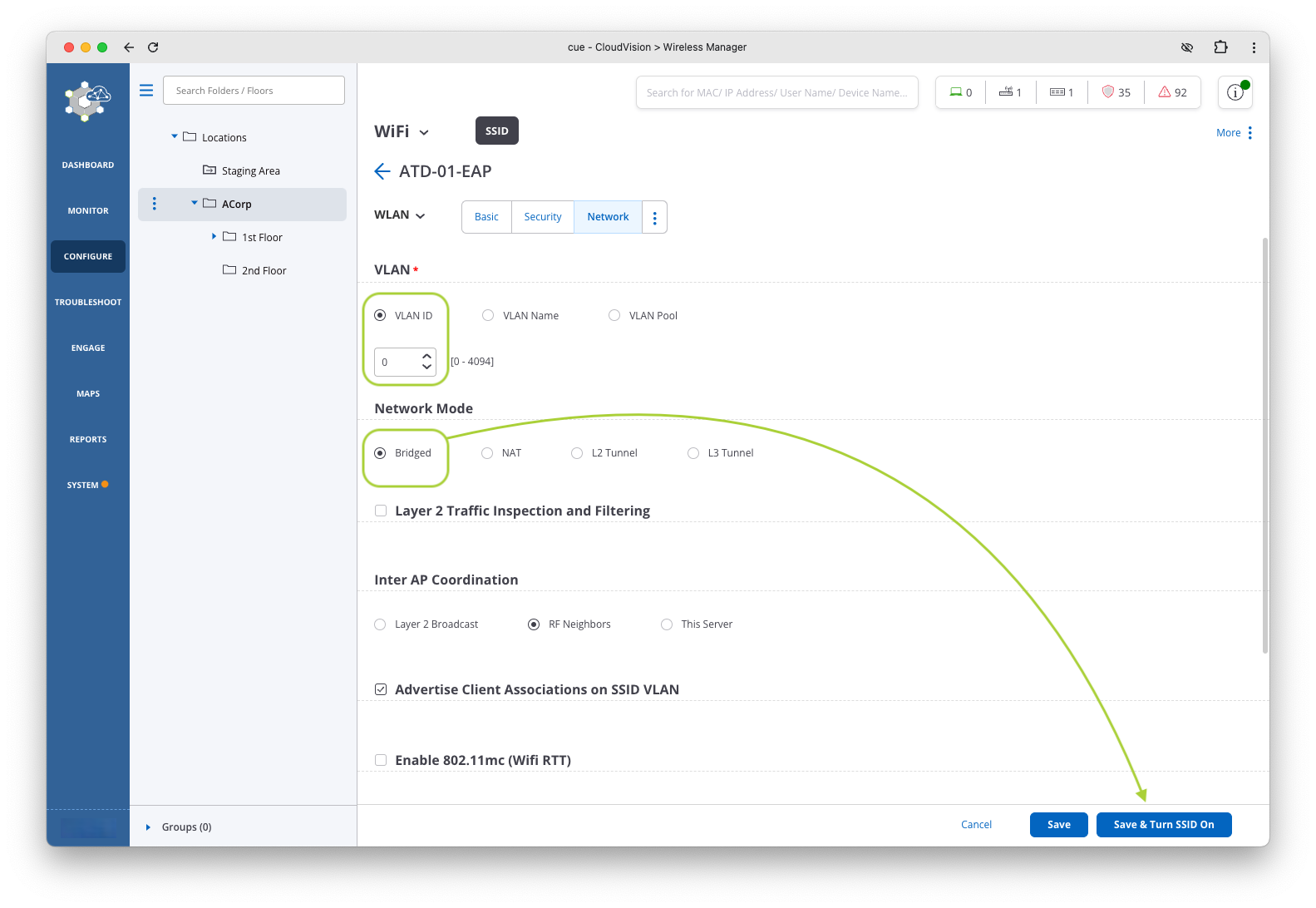

9. In the Network configuration sub-category, we’ll leave the VLAN ID set to 0, which means it will use the native VLAN. If the switchport the AP is attached to is trunked, you could change this setting to whichever VLAN you want the traffic mapped to. The rest of the settings can be left at the default values.

   Alternative Settings

   Instead of Bridged You could use NAT (often done for Guest) or L2 Tunnel / L3 Tunnel, as we completed in the wireless lab.



10. Click the Save & Turn SSID On button at the bottom of the page.

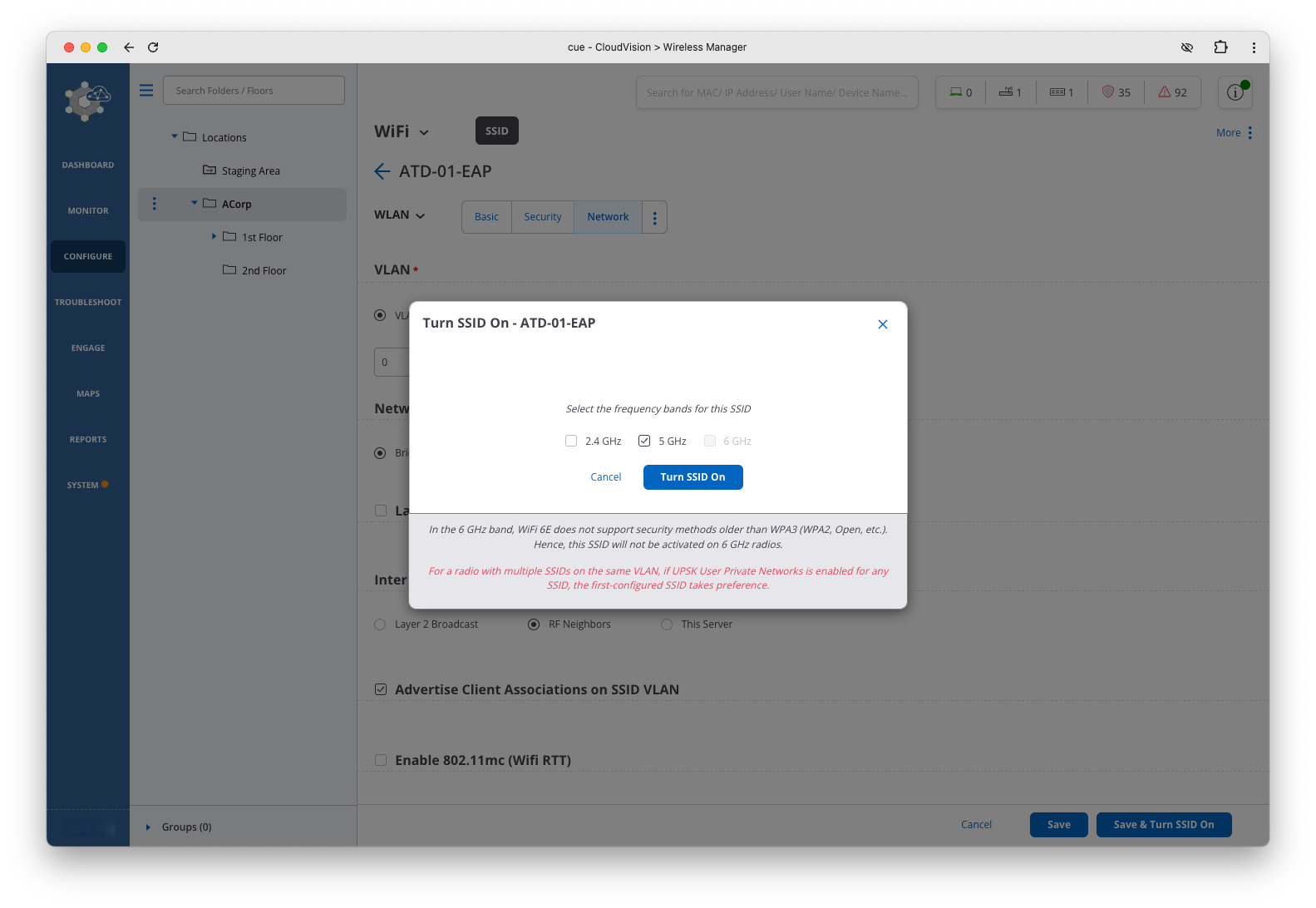

11. Only select the 5 GHz option on the next screen (deselect the 2.4 GHz box if it’s checked), then click Turn SSID On.

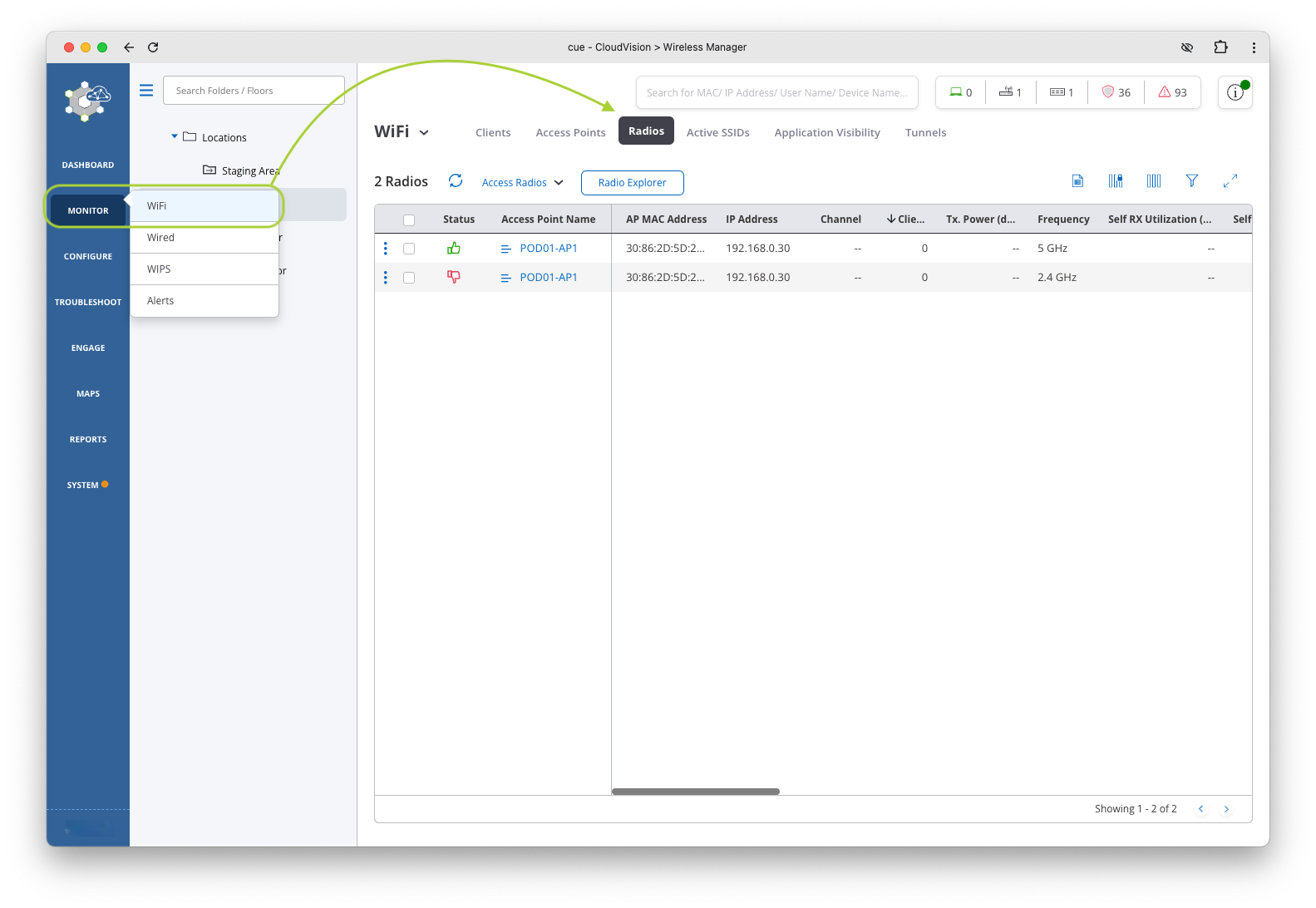

12. After you turn on the SSID, hover your cursor over Monitor in the left hand side menu, and then click WiFi.

13. Now, in the menu options at the top of the page, look at the Radios menu option. Is the 5 GHz radio (Up) and 2.4 GHz radio (down)? It may take a minute or two for the radio to become active.

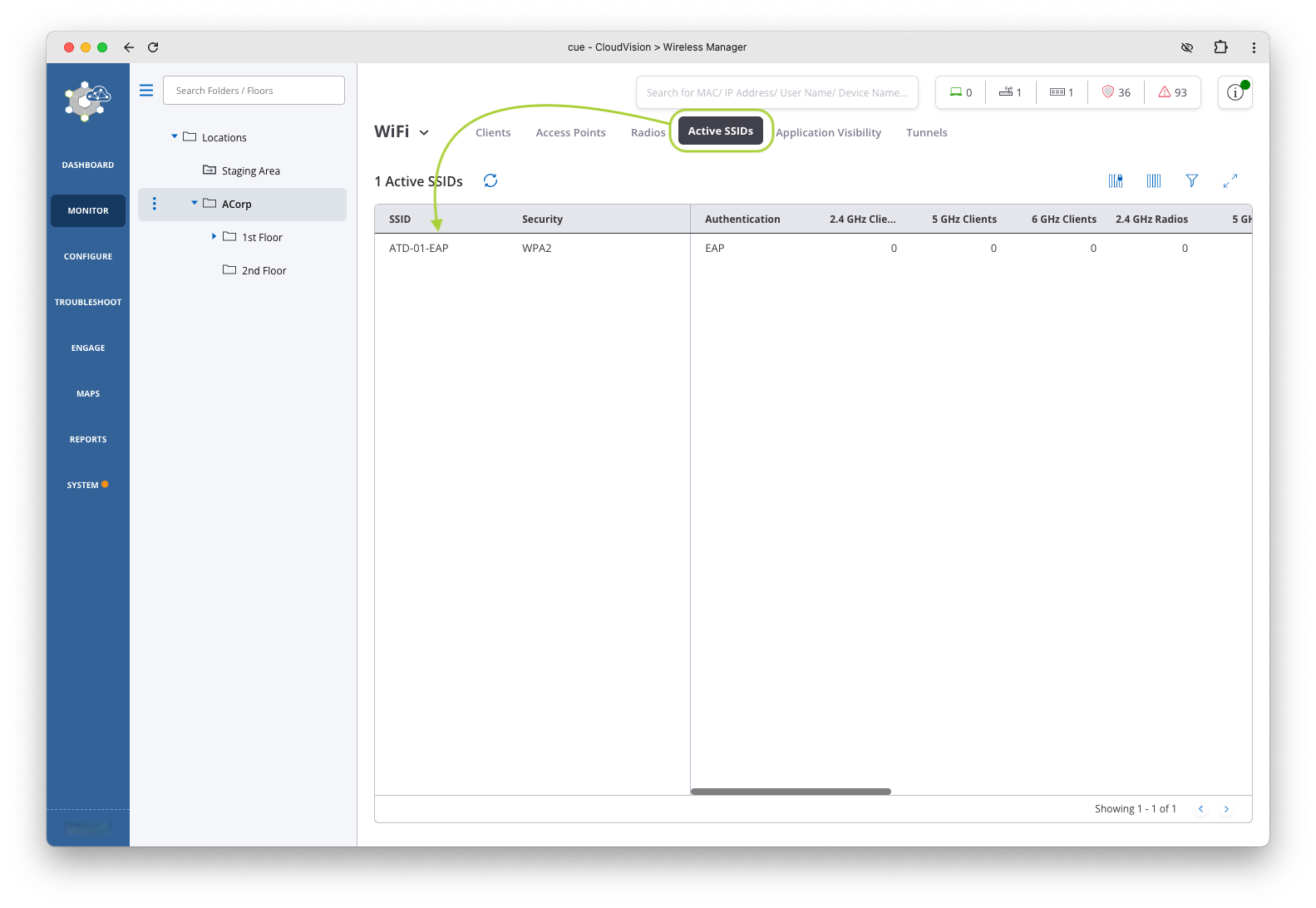

14. Check the Active SSIDs menu at the top of the screen. Is your SSID listed?



15. Now that we have a 802.1X backed SSID, let's go to AGNI to configure the policy.

CloudVision AGNI Access

AGNI Login

If you're not already logged into AGNI, navigate to the Arista Launchpad for your lab.

Open Launchpad

Login Step 1Login Step 2

Provide your assigned lab/pod email address and password and clieck Sign In

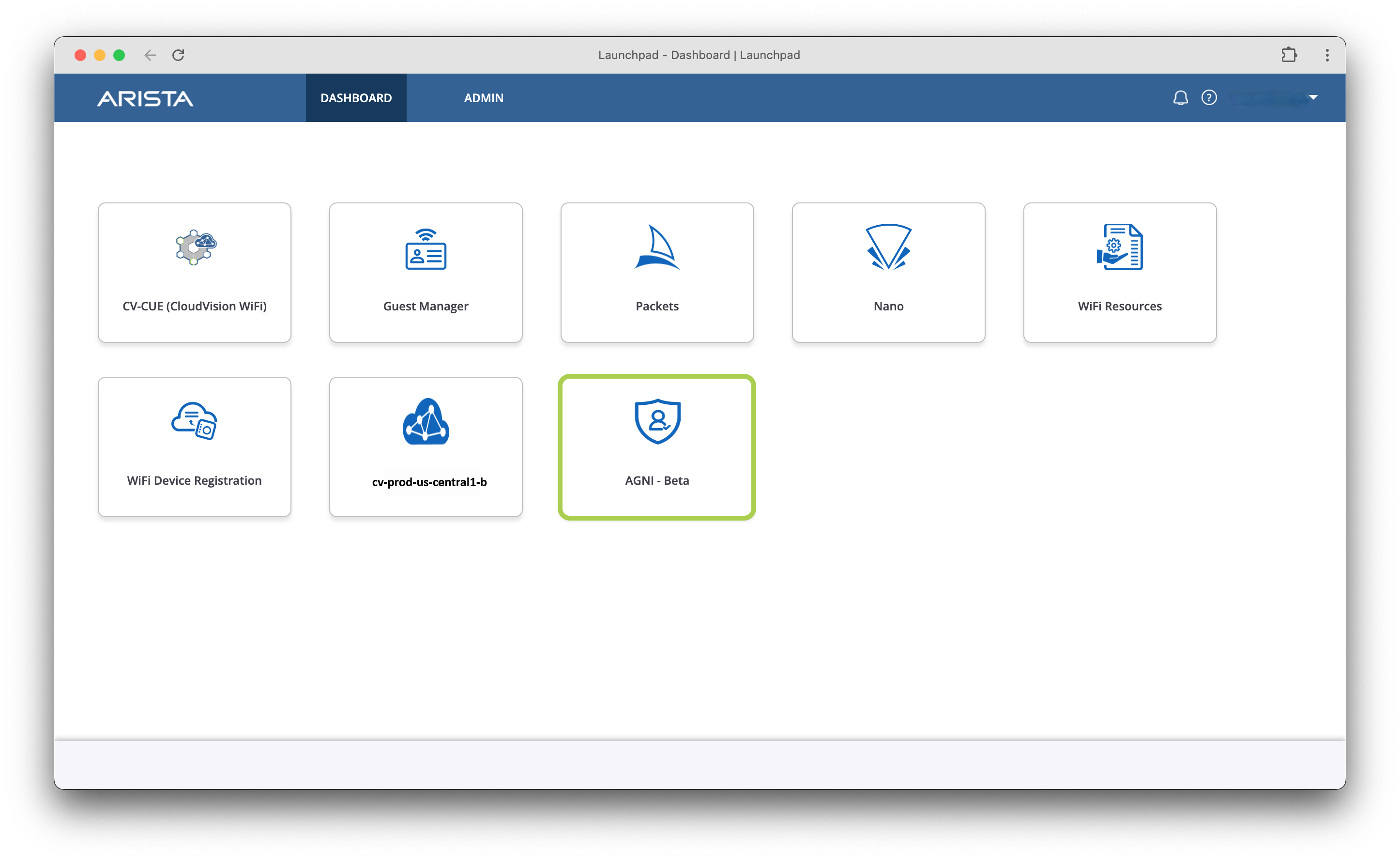

You will see the various tools tied to your tenant, this includes CVP, AGNI (NAC), and CV-CUE for wireless. Click into AGNI (Beta) tile to begin this lab.

Create AGNI Networks & Segments for the EAP-TLS Wireless Policy

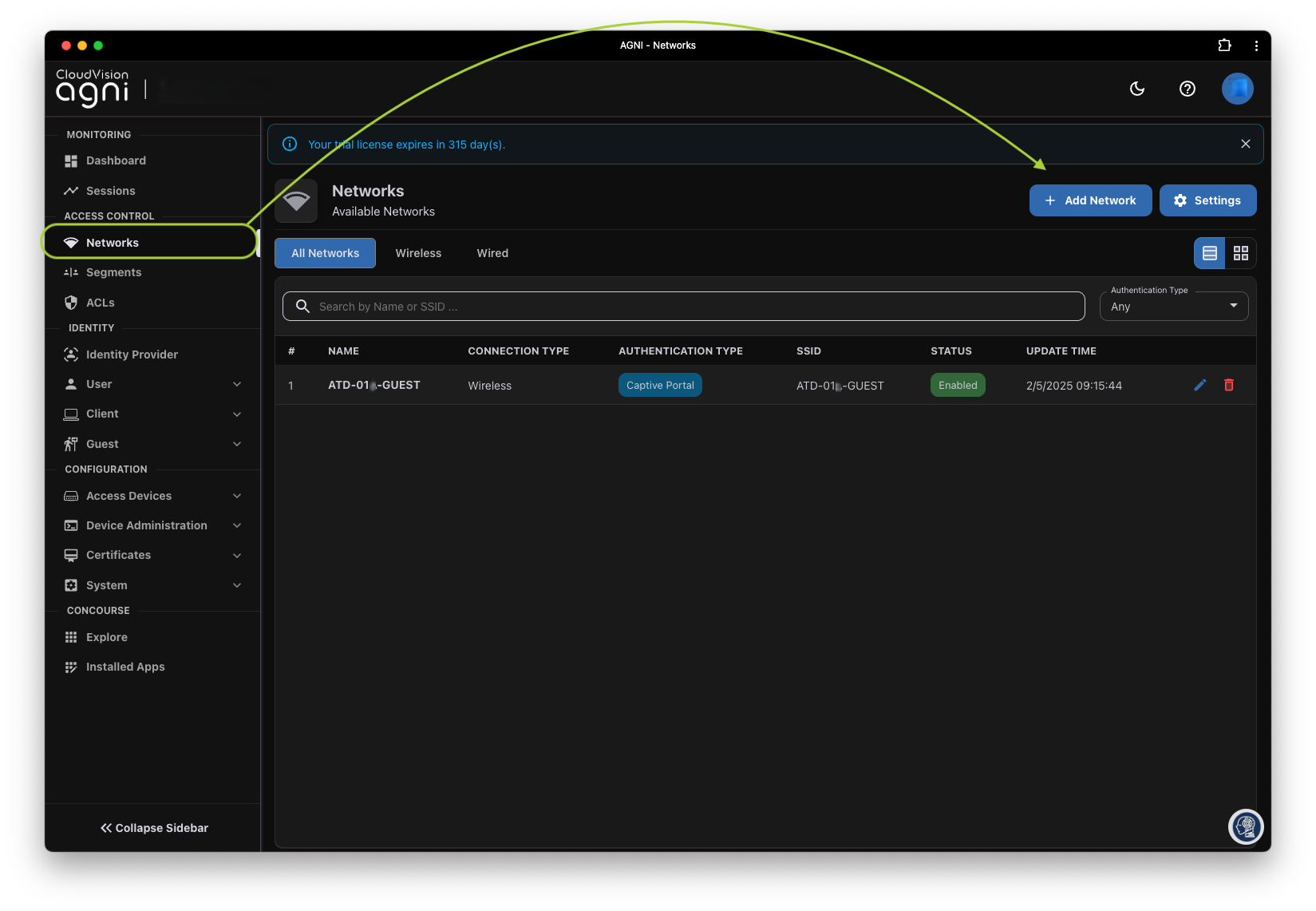

1. Click on Networks and select + Add Network

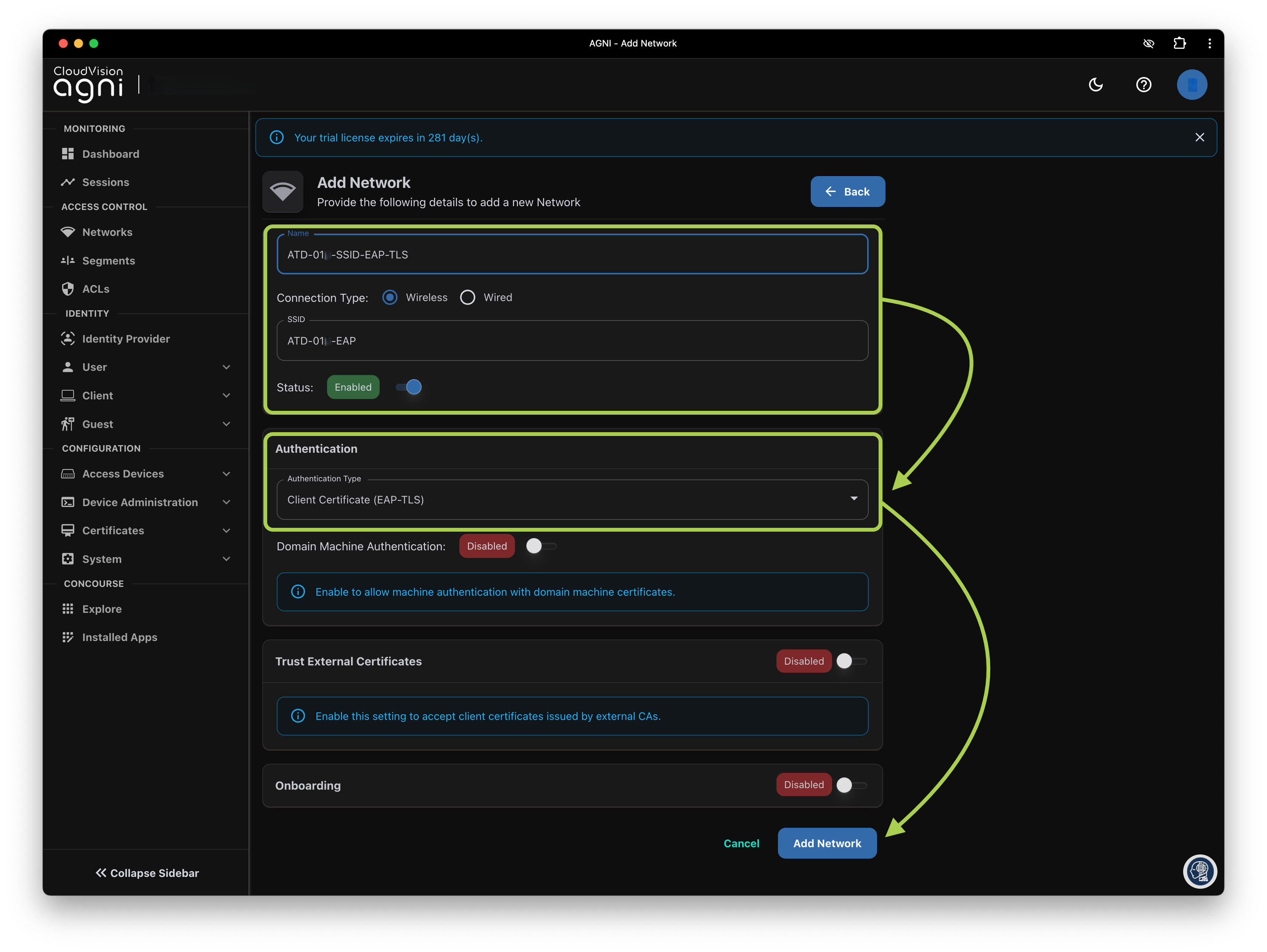

2. Configure the network with the following settings

   Network Settings

   Field	Student 1	Student 2
   Name	ATD-##-SSID-EAP-TLS	ATD-##-SSID-EAP-TLS
   Connection Type	Wireless	Wireless
   SSID	ATD-##-EAP	ATD-##-EAP
   Authentication Type	Client Certificate (EAP-TLS)	Client Certificate (EAP-TLS)



3. Click on Add Network at the bottom of the screen.

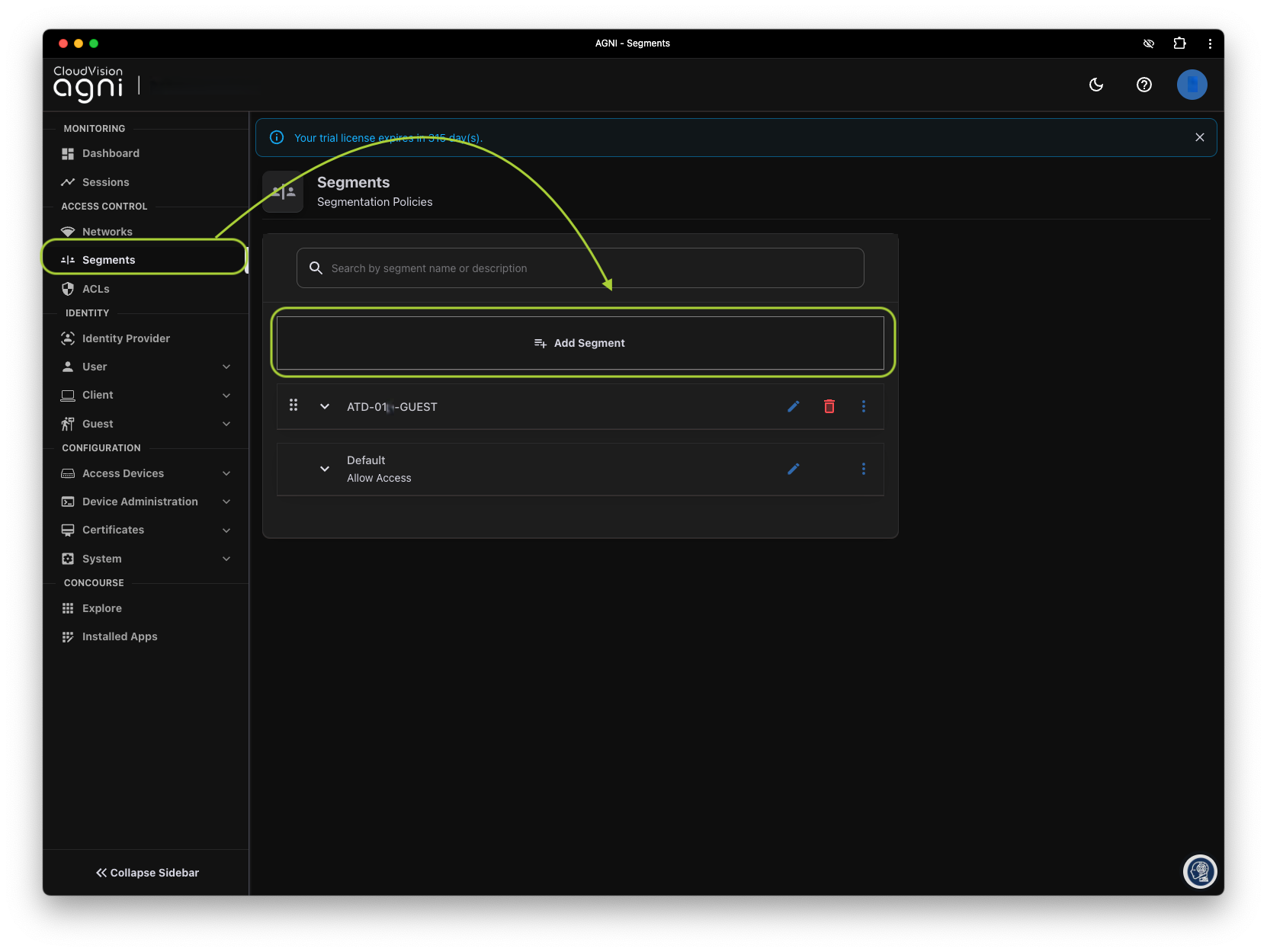

4. Next, click on Segments and then + Add Segment

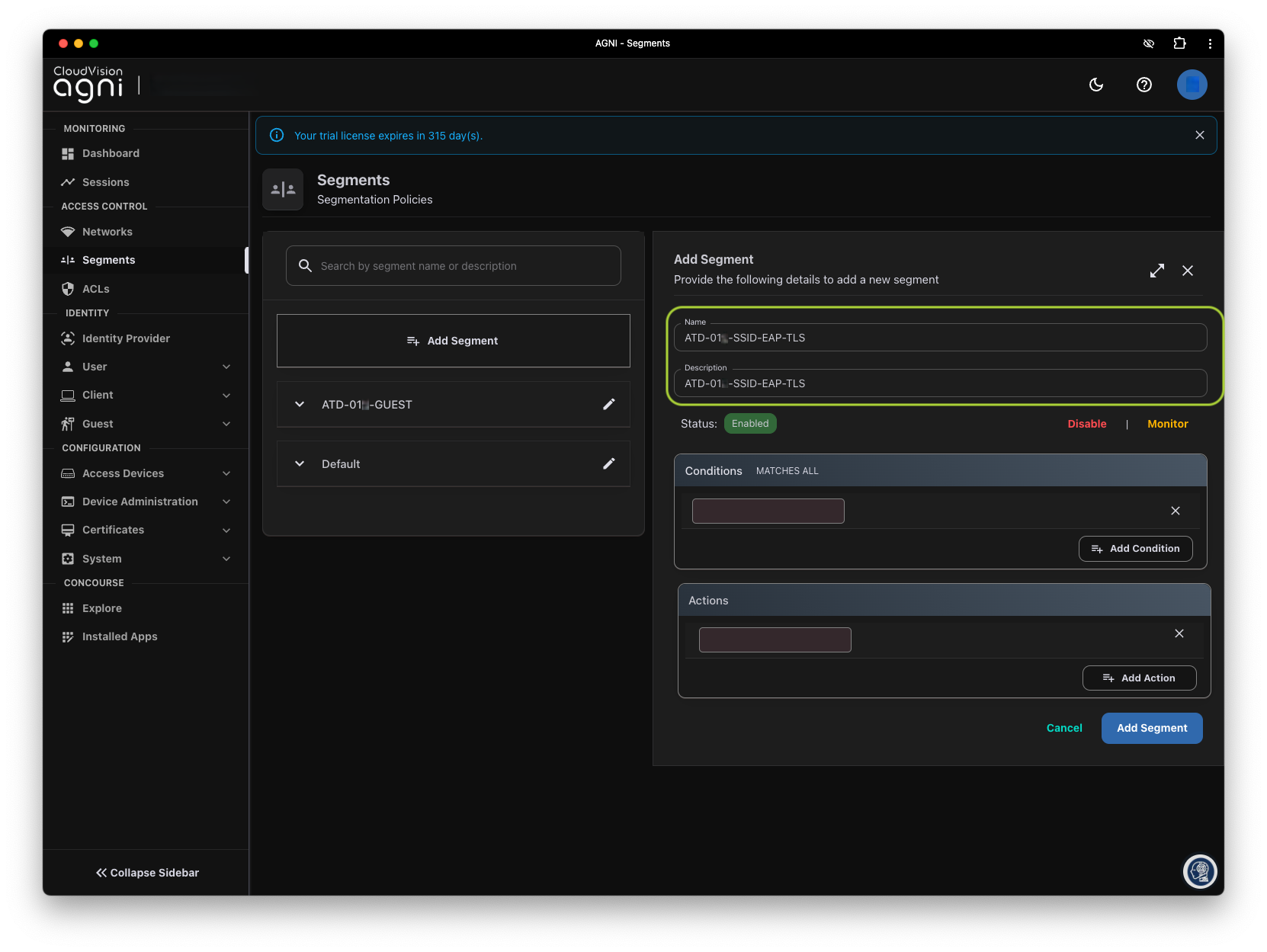

5. Configure the segment with the following settings

   Network Settings

   Field	Student 1	Student 2
   Name	ATD-##-SSID-EAP-TLS	ATD-##-SSID-EAP-TLS
   Description	ATD-##-SSID-EAP-TLS	ATD-##-SSID-EAP-TLS

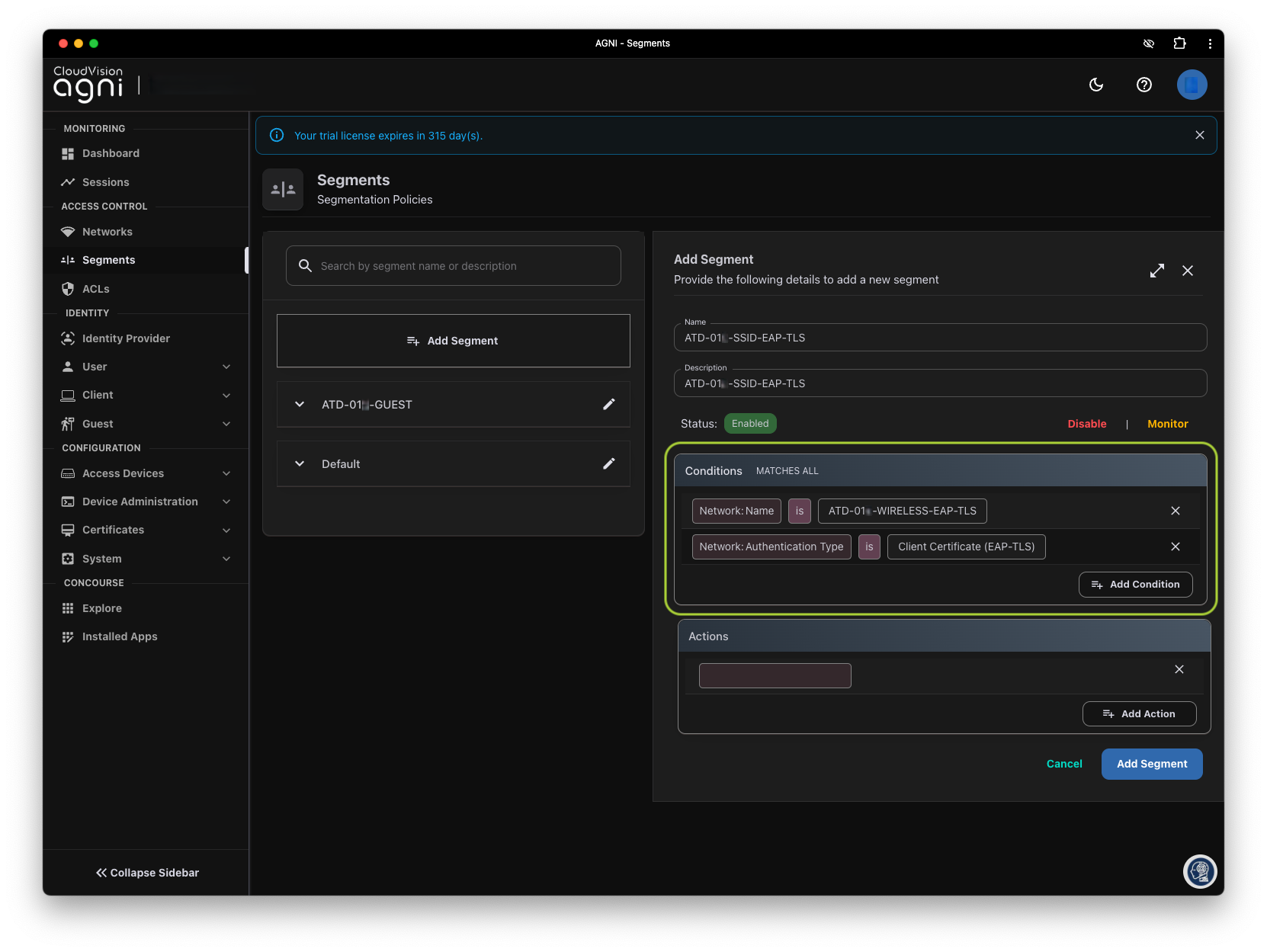

6. Next, let’s add two conditions to match the network we've defined (tied to the SSID) and the authentication type

   Conditions

   Conditions for segments must MATCH ALL conditions line by line.

   1. Select, Network, Name, is, ATD-##X-SSID-EAP-TLS from the drop down lists. Chose your A or B policy accordingly.
   2. Select, Network, Authentication Type, is, Client Certificate (EAP-TLS) from the drop down lists.
   3. Your Conditions should now look like this.

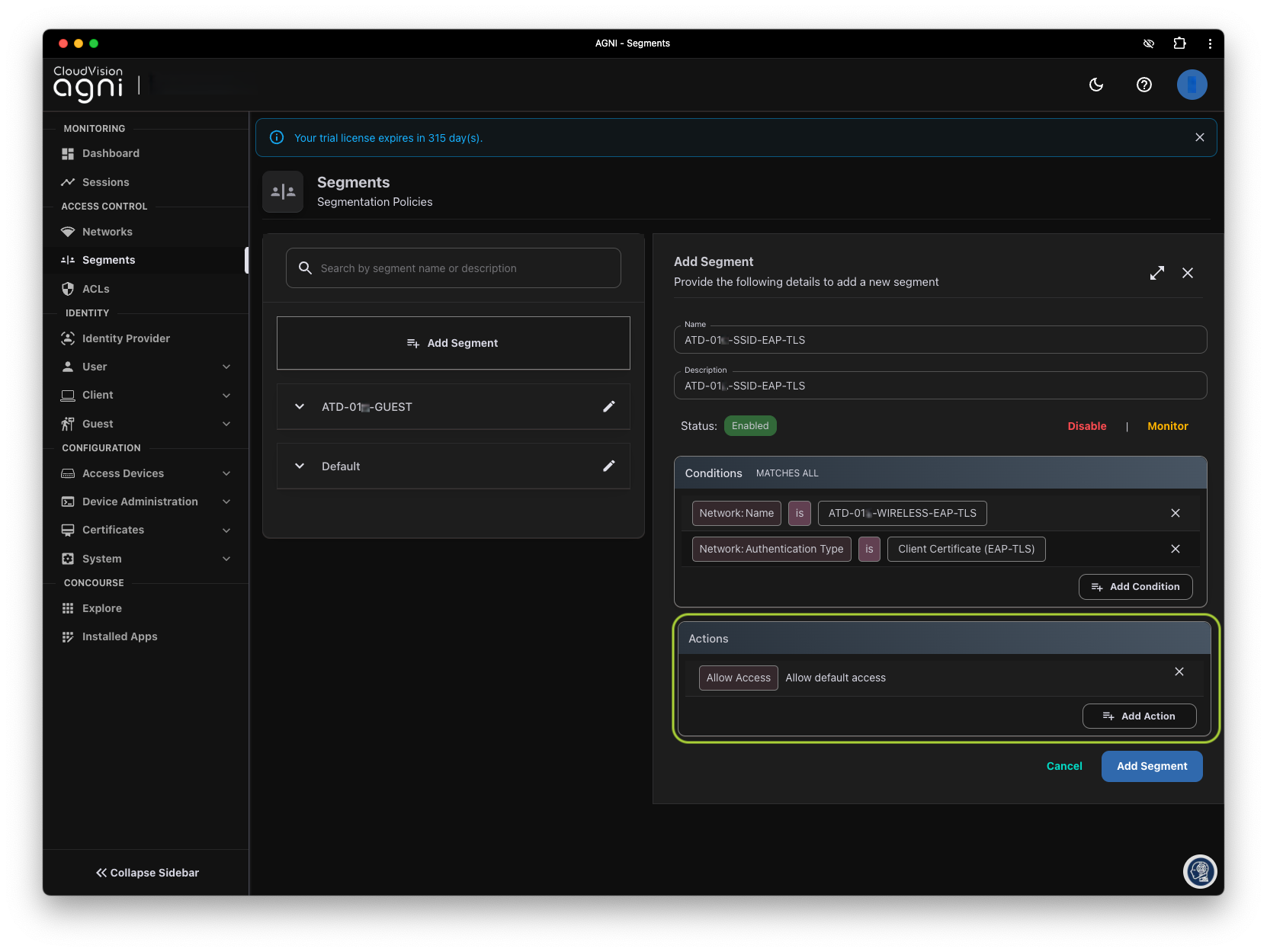

7. Under Actions select Add Action and select Allow Access



8. Finally, select Add Segment at the bottom of the page.

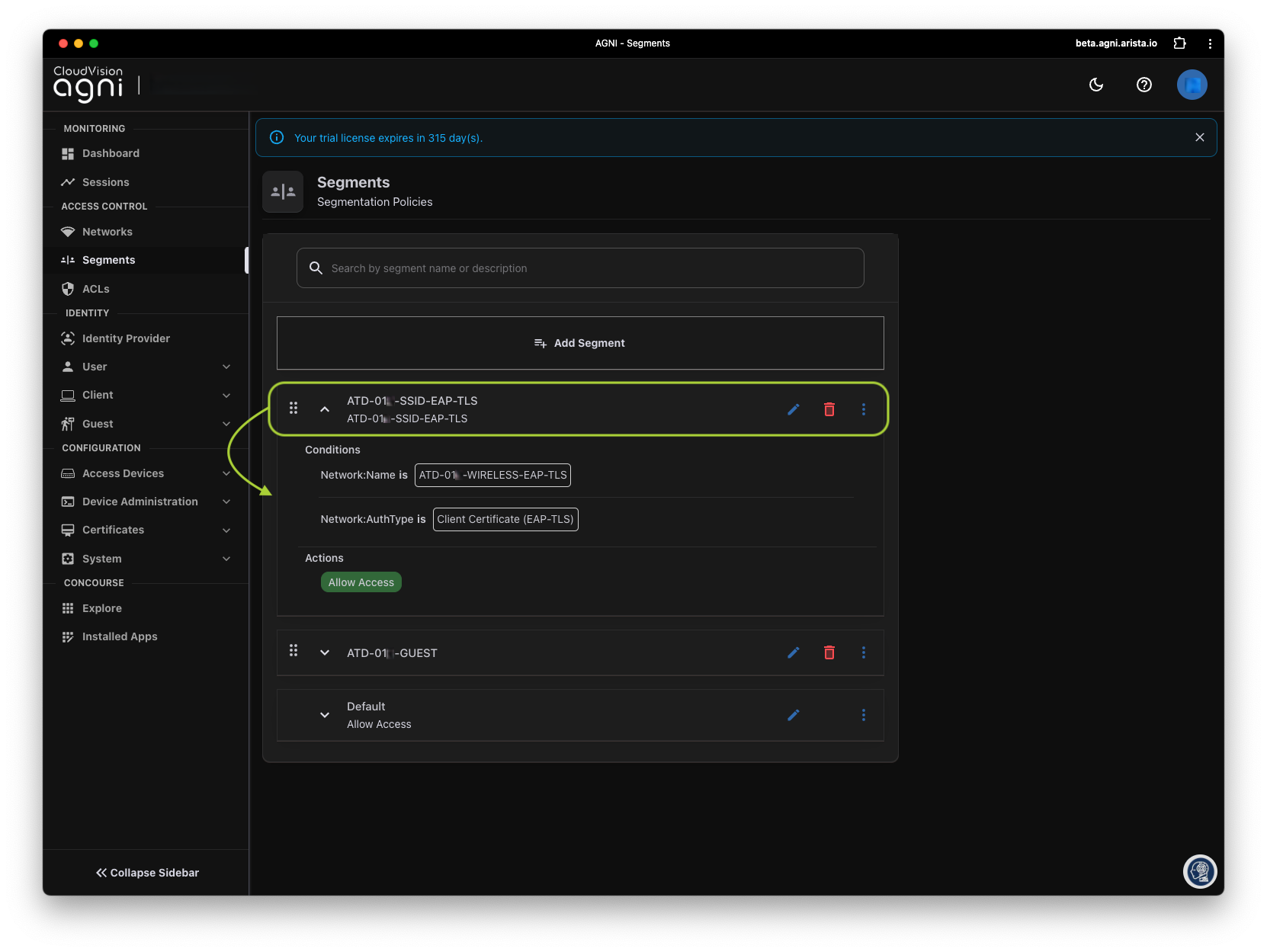

9. You should now be able to expand and review your segment.

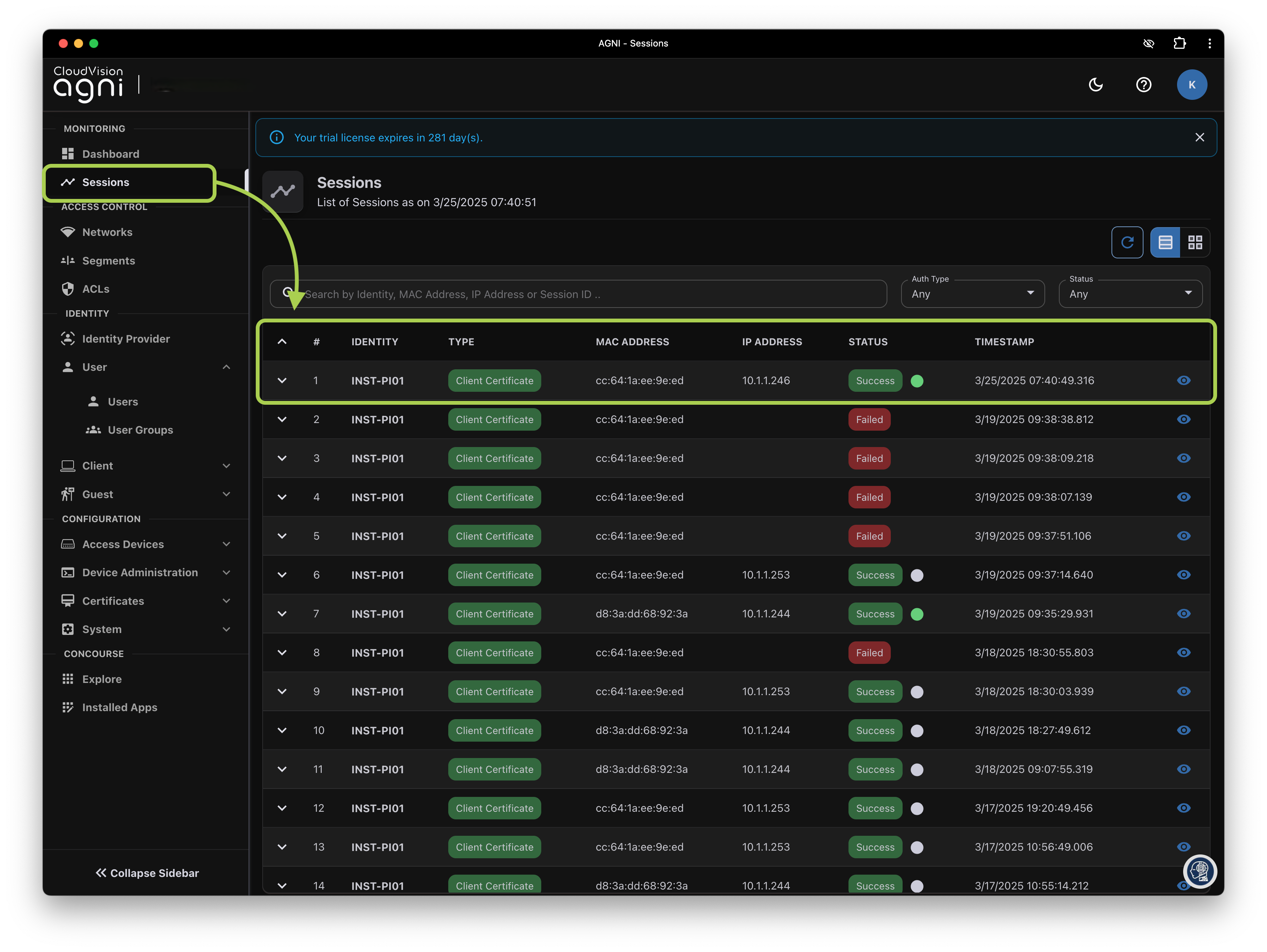

10. Next, click on Sessions to see if your ATD Raspberry Pi has a connection via the Wireless connection.

    Client Connectivity

    The Client Certificate has already been applied to the Raspberry Pi and is configured to connect to the SSID ATD-##A-EAP.

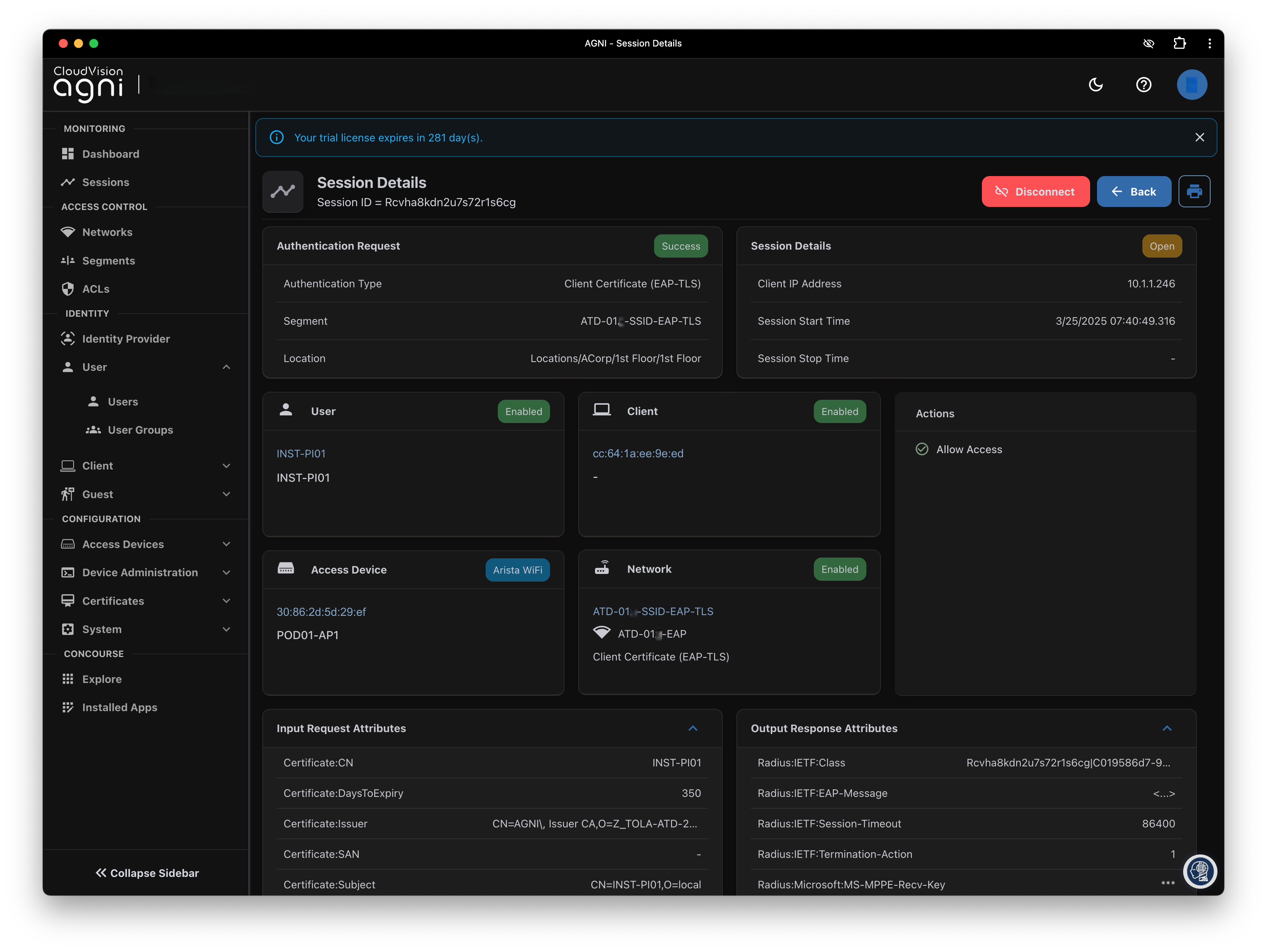

11. Click on the session and explore the information we learn about the client, we're going to come back to this in more detail later.



12. If you don’t see any new sessions within 2 minutes AGNI, power cycle the Raspberry Pi.

🎉 CONGRATS! You have completed this lab! 🎉

LET'S GO TO THE NEXT LAB!
